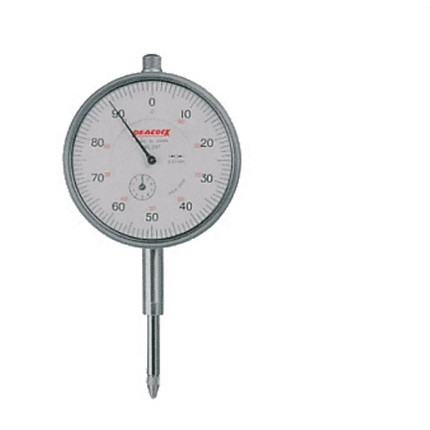

Peacock Long Travel Dial Gauges; 0.01mm, 207,Range 20mm
- Model 207
- Graduation 0.01mm
- Range 20mm
- Lug back
Dial Gauges are widely used manufacturing plants.
○ The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
○ The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.
○ The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are waterproof and dust-proof in construction.
○ The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.
|
Model
|
Graduation (mm)
|
Range (mm)
|
Reading
|
Indication error (µm)
|
Backward error (µm)
|
Repeatability (µm)
|
Measuring force less than (N)
|
|
Revolution
|
Whole measuring range
|
|
|
1/10
|
1/2
|
One
|
Two
|
| 207 |
0.01
|
20
|
±0-50-100
|
10 |
- |
±15
|
- |
±20
|
7
|
5 |
2.0
|
| Dimensions (mm) |
| Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
| 207 |
90 |
41 |
25 |
66.5 |
14.5 |
20 |
5 |
7.5 |
62.5 |
