Description

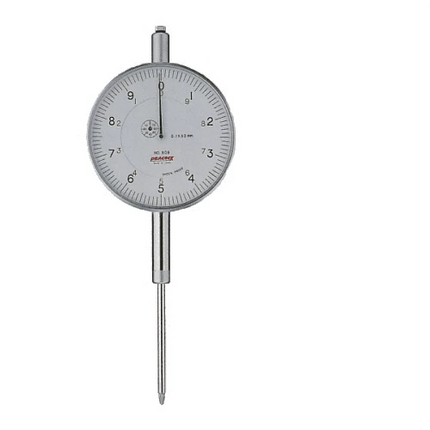

Peacock Long Travel Dial Gauges; 0.01mm, 809, Range 80mm
- Model 809
- Graduation 0.1mm
- Range 80mm
- Lug back
- Stem Ø14mm
Dial Gauges are widely used manufacturing plants.
○ The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
○ The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.
○ The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are waterproof and dust-proof in construction.
○ The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.
|
Model
|
Graduation (mm)
|
Range (mm)
|
Reading
|
Indication error (µm)
|
Backward error (µm)
|
Repeatability (µm)
|
Measuring force less than (N)
|
|
Revolution
|
Whole measuring range
|
|
|
1/10
|
1/2
|
One
|
Two
|
| 809 |
0.1
|
80
|
±0 -5-10
|
50 |
- |
±100
|
- |
±100
|
-
|
35
|
2.5
|
| Dimensions (mm) |
| Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
| 809 |
201.5 |
86.5 |
54 |
112 |
24 |
22.5 |
6 |
10 |
108 |
