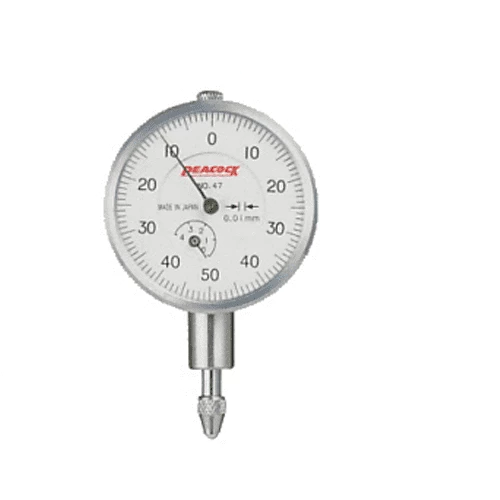

Peacock Miniature Dial Gauges; 0.01mm, 47 , Range 4mm

  • VendorPEACOCK

Description

Peacock Miniature Dial Gauges; 0.01mm, 47 , Range 4mm

  • Model 47
  • Graduation 0.01mm
  • Range 4mm
  • Contact point ( X-107 )
  • Lug back
  • Dial dia. Ø36mm

                        These compact size dial gauges are equipped with small dial faces.
                        They are especially useful for measuring jigs, in restricted areas.

                        Model

                        Graduation  (mm)

                        Range (mm)

                        Reading

                        Indication error (µm)

                        Backward error (µm)

                        Repeatability (µm)

                        Measuring force less than (N)

                        Revolution

                        Whole measuring range

                        1/10

                        1/2

                        One

                        Two

                        47

                        0.01

                        4

                        0-50-0

                        9 -

                        ±13

                        -

                        ±15

                        6

                        5

                        1.4



                        Dimensions (mm)
                        Model A B C D E F G H I
                        47 39.6 20 9.7 36 13 15 3.5 6.5 32



                        Product form

                        Peacock Miniature Dial Gauges; 0.01mm, 47 , Range 4mm Model 47  Graduation 0.01mm  Range 4mm  Contact point ( X-107 )... Read more

                        SKU: 47

                        $69.43 Excl. VAT
