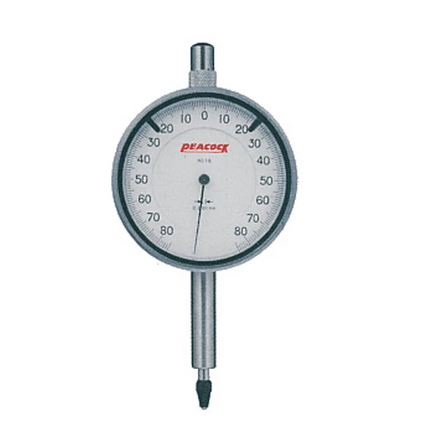

Peacock One Revolution Dial Gauges; 0.001mm, 18, Range 0.16mm,Oil-proof type

  • VendorPEACOCK

Description

Peacock One Revolution Dial Gauges; 0.001mm, 18, Range 0.16mm,Oil-proof type

  • Model 18
  • Graduation 0.001mm
  • Range 0.16mm
  • Long stem
  • Contact Point ( XB-1 )
  • Oil-proof type
  • Flat crystal
  • Flat back

    These are high-accuracy dial gauges with the pointer giving less than a full turn that
    can resist rigorous rigorous continuous measurement.
    The long stem is made of stainless steel, is high in strenght and is malfunction-free
    due to fastening.
    The dial faces except No. 18 and 17B are easy to read with green and orange
    (dead zone)

    Model Graduation  (mm)

    Range (mm)

    (Free stroke)

    		 Reading Indication error (µm) Backward error (µm) Repeatability (µm) Measuring force less than (N)
    Revolution Whole measuring range
    1/10 1/2 One Two
    18 0.001 0.16(3.0) 80-0-80 2.5 ±3 ±4 - - 3 0.5 1.5



    Dimensions (mm)
    Model A B C D E F G H I
    18 69.4 41.5 29 55 16.8 20 4 6.5 49



    Product form

    Peacock One Revolution Dial Gauges; 0.001mm, 18, Range 0.16mm,Oil-proof type Model 18  Graduation 0.001mm  Range 0.16mm  Long stem Contact Point... Read more

    SKU: 18

    $296.01 Excl. VAT

      • Ships within 5–10 business days
      • Ships from South Korea
      • Export packing available
      • Worldwide shipping
      • Secure payments Paypal
      QUICK RFQ · FAST ProSource MRO

      MRO quote in 10 seconds.

      Bearings, sensors, valves, pneumatics — get a real Korean supplier quote within 24 hours.

      Skip middlemen · Save up to 20%
      STEP 1
      Submit part #
      ~10 sec
      STEP 2
      We match a supplier
      Verified KR
      STEP 3
      Quote in inbox
      Within 24h

      MRO categories we source:

      Bearings Sensors Valves Pneumatics Cutting tools Motion control
      BRANDS SMC · NSK · SKF · Omron · Festo · +50
      Get my quote now
      No signup required
      Authorized Korean distributors — not automated
      Reply within 24 hours

      Free service · Redirects to prosourcemro.com

      Description

      Peacock One Revolution Dial Gauges; 0.001mm, 18, Range 0.16mm,Oil-proof type

      • Model 18
      • Graduation 0.001mm
      • Range 0.16mm
      • Long stem
      • Contact Point ( XB-1 )
      • Oil-proof type
      • Flat crystal
      • Flat back

        These are high-accuracy dial gauges with the pointer giving less than a full turn that
        can resist rigorous rigorous continuous measurement.
        The long stem is made of stainless steel, is high in strenght and is malfunction-free
        due to fastening.
        The dial faces except No. 18 and 17B are easy to read with green and orange
        (dead zone)

        Model Graduation  (mm)

        Range (mm)

        (Free stroke)

        		 Reading Indication error (µm) Backward error (µm) Repeatability (µm) Measuring force less than (N)
        Revolution Whole measuring range
        1/10 1/2 One Two
        18 0.001 0.16(3.0) 80-0-80 2.5 ±3 ±4 - - 3 0.5 1.5



        Dimensions (mm)
        Model A B C D E F G H I
        18 69.4 41.5 29 55 16.8 20 4 6.5 49
