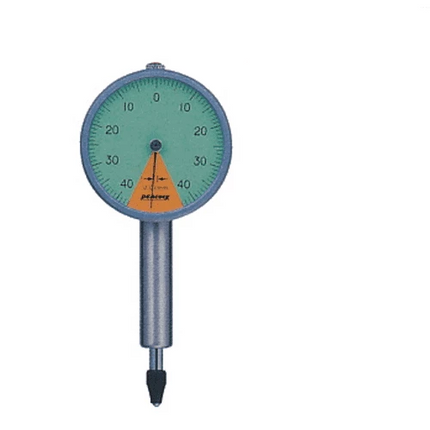

Peacock One Revolution Dial Gauges; 0.01mm, 47Z-XB, Range 0.8mm

  • VendorPEACOCK

Description

Peacock One Revolution Dial Gauges; 0.01mm, 47Z-XB, Range 0.8mm

  • Model 47Z-XB
  • Graduation 0.01mm
  • Range 0.8mm
  • Long stem
  • Flat back
  • Contact Point ( XB-1 )
                            1. These are high-accuracy dial gauges with the pointer giving less than a full turn that can resist rigorous rigorous continuous measurement.
                            2. The long stem is made of stainless steel, is high in strenght and is malfunction-freedue to fastening.
                            3. The dial faces except No. 18 and 17B are easy to read with green and orange(dead zone)

                            Model

                            Graduation  (mm)

                            Range (mm)

                            (Free stroke)

                            Reading

                            Indication error (µm)

                            Backward error (µm)

                            Repeatability (µm)

                            Measuring force less than (N)

                            Revolution

                            Whole measuring range

                            1/10

                            1/2

                            One

                            Two
                            47Z-XB

                            0.01

                            0.8(4.0)

                            40-0-40

                            		 9 -

                            ±13

                            		 -



                            6

                            		 5

                            1.4



                            Dimensions (mm)
                            Model A B C D E F G H I K
                            47Z-XB 61.9 20 30 36 13 15 4 5.8 32 43.9



                            Product form

                            Peacock One Revolution Dial Gauges; 0.01mm, 47Z-XB, Range 0.8mm Model 47Z-XB  Graduation 0.01mm  Range 0.8mm  Long stem Flat back Contact... Read more

                            SKU: 47Z-XB

                            $164.66 Excl. VAT

                              • Ships within 5–10 business days
                              • Ships from South Korea
                              • Export packing available
                              • Worldwide shipping
                              • Secure payments Paypal
