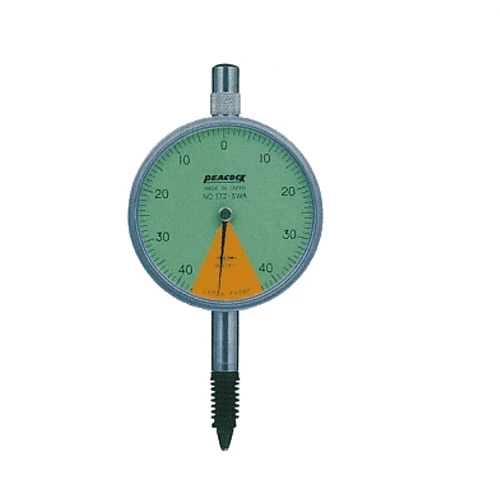

Peacock One Revolution Dial Gauges; 0.01mm , Range 0.8mm, Oil-proof type, 17Z-SWA

  • VendorPEACOCK

Description

Peacock One Revolution Dial Gauges; 0.01mm , Range 0.8mm, Oil-proof type, 17Z-SWA

  • Model 17Z-SWA
  • Graduation 0.01mm
  • Range 0.8mm
  • Contact Point ( XB-2A )
  • Oil-proof type
  • Flat back



  • These are high-accuracy dial gauges with the pointer giving less than a full turn that can resist rigorous rigorous continuous measurement.
  • The long stem is made of stainless steel, is high in strenght and is malfunction-free due to fastening.
  • The dial faces except No. 18 and 17B are easy to read with green and orange (dead zone)
    Model Graduation  (mm)

    Range (mm)

    (Free stroke)

    		 Reading Indication error (µm) Backward error (µm) Repeatability (µm) Measuring force less than (N)
    Revolution Whole measuring range
    1/10 1/2 One Two
    17Z-SWA 0.01 0.8(7.0) 40-0-40 8 ±9 ±10 - - 5 5 1.4



    Dimensions (mm)
    Model A B C D E F G H I
    17Z-SWA 65 41.5 18.5 53 14.5 20 4 6.5 49



    Product form

    Peacock One Revolution Dial Gauges; 0.01mm , Range 0.8mm, Oil-proof type, 17Z-SWA Model 17Z-SWA  Graduation 0.01mm  Range 0.8mm  Contact Point... Read more

    SKU: 17Z-SWA

    $223.30 Excl. VAT

      • Ships within 5–10 business days
      • Ships from South Korea
      • Export packing available
      • Worldwide shipping
      • Secure payments Paypal
