Description

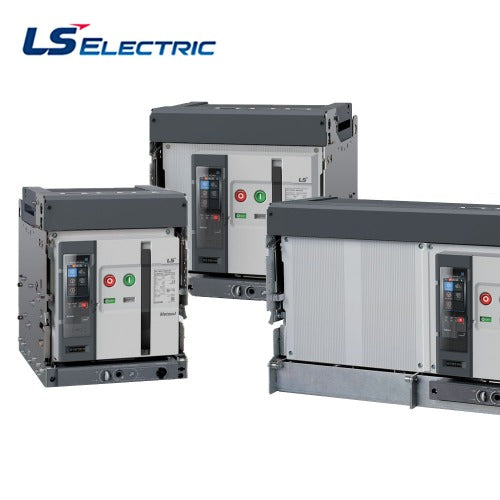

LS ELECTRIC AH1U1 — genuine LS ELECTRIC Metasol Air Circuit Breaker (ACB) AN-32E3-32V M1D1D1AX (model AH1U1).
Check that the frame, pole count and accessory codes (motor, closing and trip coil voltages) match the order code exactly; these determine the breaker's configuration and cannot be changed afterward.
A four-pole, 3200 A drawout ACB in a 3200AF frame for 690 V use. It combines very high current capacity with a switched neutral for four-wire main distribution in large plants.
Key Features
- Four poles include the neutral conductor
- Needs matching high-current busbar connections in the cubicle
- Accessory codes define the coils and motor
Specifications
| Model |
Specification |
| AH1U1 |
Frame: 3200AF Pole: 3Pole Rated Current: 3200A Withdrawal Method: V (Vertical Up/Down Type) Motor (M) Closing (D) Trip (D) Power: AC/DC110V Auxiliary Contact / Charge: Standard OFF-3a3b Trip unit: AH1 (Relay Type: Ammeter, Communication & Protection Function: H - L, S, I, G, Operating Frequency 60Hz, Control Power Voltage: Self-Powered, Communication N/A) UVT: AC/DC 100V~130V |
- Brand: LS ELECTRIC
- Model: AH1U1
About LS ELECTRIC
LS ELECTRIC (formerly LSIS) is one of South Korea's largest makers of power and automation equipment: Metasol and Susol circuit breakers and contactors, PLCs, HMIs, inverters and power-metering devices.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
- Some models are made to order; the exact lead time is confirmed after the order is placed.
- Heavy or high-value item: online checkout is disabled. Please request a quote for freight and pricing.
