ROTHENBERGER ROAIRVAC 3.0, 230V, 85 l/min, 250W , 170062

Description

ROAIRVAC 3.0, 230V, 85 l/min, 250W , 170062

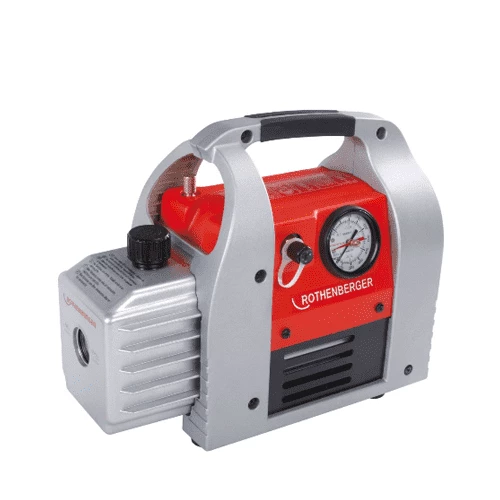

The Rothenberger ROAIRVAC 3.0 is suited for the evacuation of all refrigeration circuits according to DIN 8975. The two-stage rotary vane pump achieves a vacuum of less than 25 micron. This makes them ideal for all refrigeration plant engineers and technicians.

SKU: 170062

Product profile

•Four-pole motor for increased torque and long service life
•Solenoid check valve to protect the refrigeration circuit from oil contamination in case of a power interruption

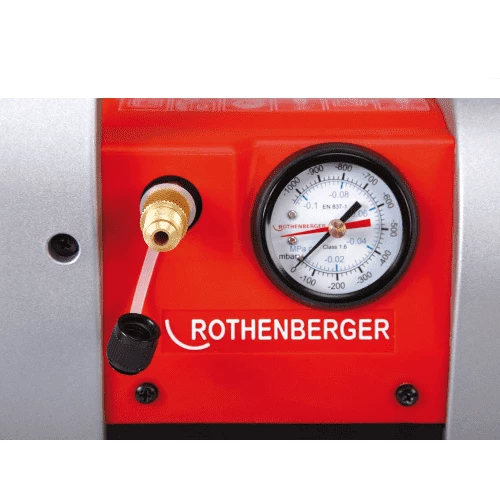

•Vacuum gauge with integrated drag indicator allows quick and easy control of the evacuation process
•Protection of the integrated components thanks to light and high-quality housing
•Gas ballast valve for reducing the water vapour in the oil tank
•Special filter reduces oil mist at the exhaust vent
•Easy to read oil level through sight glass
•Easily accessible oil drain plug for quick emptying
•Thermal switch protects the unit from overheating of the motor
•Standard 1/4" SAE connection, as well as 5/16" SAE and 3/8" SAE adaptor included
•Detachable cable prevents cable damage

Final partial pressure

 15MICRON
Pump delivery (from) 0LMIN
Pump delivery (up to) 85LMIN
Product weight 10,7KG
Frequency (from) 50HZ
Frequency (up to) 60HZ
Voltage (up to) 240V
Power input (up to) 250W
Voltage (from) 220V
Customs tariff number 84141025
Currency order unit 1
Dangerous goods indicator Material is not a hazardous good
Country of origin CN
Product description 2-stage vacuum pump for evacuation of refrigeration circuits
NAME ROAIRVAC 3.0, 230V, 85 l/min, 250W
Length in cm 40,00CM
Net weight 10,70KG
Gross weight 12,61KG
Height in cm 35,00CM
EAN/UPC 4004625700624
Brand ROTHENBERGER
Width in cm 20,00CM
Product form

ROAIRVAC 3.0, 230V, 85 l/min, 250W , 170062 The Rothenberger ROAIRVAC 3.0 is suited for the evacuation of all refrigeration... Read more

SKU: 251-1069

$568.88 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    ROAIRVAC 3.0, 230V, 85 l/min, 250W , 170062

    The Rothenberger ROAIRVAC 3.0 is suited for the evacuation of all refrigeration circuits according to DIN 8975. The two-stage rotary vane pump achieves a vacuum of less than 25 micron. This makes them ideal for all refrigeration plant engineers and technicians.

    SKU: 170062

    Product profile

    •Four-pole motor for increased torque and long service life
    •Solenoid check valve to protect the refrigeration circuit from oil contamination in case of a power interruption
    •Vacuum gauge with integrated drag indicator allows quick and easy control of the evacuation process
    •Protection of the integrated components thanks to light and high-quality housing
    •Gas ballast valve for reducing the water vapour in the oil tank
    •Special filter reduces oil mist at the exhaust vent
    •Easy to read oil level through sight glass
    •Easily accessible oil drain plug for quick emptying
    •Thermal switch protects the unit from overheating of the motor
    •Standard 1/4" SAE connection, as well as 5/16" SAE and 3/8" SAE adaptor included
    •Detachable cable prevents cable damage

    Final partial pressure

    		 15MICRON
    Pump delivery (from) 0LMIN
    Pump delivery (up to) 85LMIN
    Product weight 10,7KG
    Frequency (from) 50HZ
    Frequency (up to) 60HZ
    Voltage (up to) 240V
    Power input (up to) 250W
    Voltage (from) 220V
    Customs tariff number 84141025
    Currency order unit 1
    Dangerous goods indicator Material is not a hazardous good
    Country of origin CN
    Product description 2-stage vacuum pump for evacuation of refrigeration circuits
    NAME ROAIRVAC 3.0, 230V, 85 l/min, 250W
    Length in cm 40,00CM
    Net weight 10,70KG
    Gross weight 12,61KG
    Height in cm 35,00CM
    EAN/UPC 4004625700624
    Brand ROTHENBERGER
    Width in cm 20,00CM
