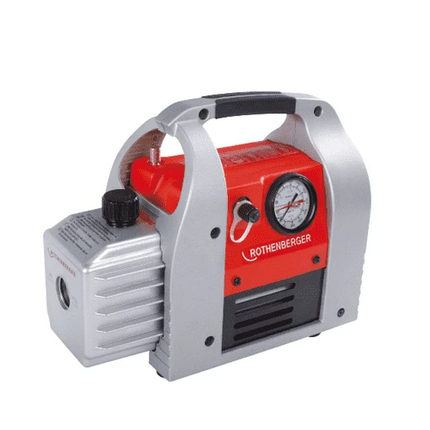

ROTHENBERGER ROAIRVAC 6.0, 230V, 170 l/min, 375W , 170063

Description

ROAIRVAC 6.0, 230V, 170 l/min, 375W , 170063

The Rothenberger ROAIRVAC 6.0 is suited for the evacuation of all refrigeration circuits according to DIN 8975. The two-stage rotary vane pump achieves a vacuum of less than 25 micron. This makes them ideal for all refrigeration plant engineers and technicians.

SKU: 170063

Product profile

•Solenoid check valve to protect the refrigeration circuit from oil contamination in case of a power interruption
•Vacuum gauge with integrated drag indicator allows quick and easy control of the evacuation process
•Protection of the integrated components thanks to light and high-quality housing
•Gas ballast valve for reducing the water vapour in the oil tank
•Special filter reduces oil mist at the exhaust vent
•Easy to read oil level through sight glass
•Easily accessible oil drain plug for quick emptying
•Thermal switch protects the unit from overheating of the motor
•Standard 1/4" SAE connection, as well as 5/16" SAE and 3/8" SAE adaptor included
•Detachable cable prevents cable damage



Final partial pressure

 25MICRON
Pump delivery (from) 0LMIN
Pump delivery (up to) 170LMIN
Product weight 11,5KG
Frequency (from) 50HZ
Frequency (up to) 60HZ
Voltage (up to) 240V
Power input (up to) 375W
Voltage (from) 220V
Customs tariff number 84141025
Currency order unit 1
Dangerous goods indicator Material is not a hazardous good
Country of origin CN
Product description 2-stage vacuum pump for evacuation of refrigeration circuits
NAME ROAIRVAC 6.0, 230V, 170 l/min, 375W
Length in cm 40,00CM
Net weight 11,50KG
Gross weight 13,20KG
Height in cm 35,00CM
EAN/UPC 4004625053393
Brand ROTHENBERGER
Width in cm 20,00CM
Product form

ROAIRVAC 6.0, 230V, 170 l/min, 375W , 170063 The Rothenberger ROAIRVAC 6.0 is suited for the evacuation of all refrigeration... Read more

SKU: 251-1078
Barcode: 4004625053393

$617.88 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      ROAIRVAC 6.0, 230V, 170 l/min, 375W , 170063

      The Rothenberger ROAIRVAC 6.0 is suited for the evacuation of all refrigeration circuits according to DIN 8975. The two-stage rotary vane pump achieves a vacuum of less than 25 micron. This makes them ideal for all refrigeration plant engineers and technicians.

      SKU: 170063

      Product profile

      •Solenoid check valve to protect the refrigeration circuit from oil contamination in case of a power interruption
      •Vacuum gauge with integrated drag indicator allows quick and easy control of the evacuation process
      •Protection of the integrated components thanks to light and high-quality housing
      •Gas ballast valve for reducing the water vapour in the oil tank
      •Special filter reduces oil mist at the exhaust vent
      •Easy to read oil level through sight glass
      •Easily accessible oil drain plug for quick emptying
      •Thermal switch protects the unit from overheating of the motor
      •Standard 1/4" SAE connection, as well as 5/16" SAE and 3/8" SAE adaptor included
      •Detachable cable prevents cable damage



      Final partial pressure

      		 25MICRON
      Pump delivery (from) 0LMIN
      Pump delivery (up to) 170LMIN
      Product weight 11,5KG
      Frequency (from) 50HZ
      Frequency (up to) 60HZ
      Voltage (up to) 240V
      Power input (up to) 375W
      Voltage (from) 220V
      Customs tariff number 84141025
      Currency order unit 1
      Dangerous goods indicator Material is not a hazardous good
      Country of origin CN
      Product description 2-stage vacuum pump for evacuation of refrigeration circuits
      NAME ROAIRVAC 6.0, 230V, 170 l/min, 375W
      Length in cm 40,00CM
      Net weight 11,50KG
      Gross weight 13,20KG
      Height in cm 35,00CM
      EAN/UPC 4004625053393
      Brand ROTHENBERGER
      Width in cm 20,00CM
