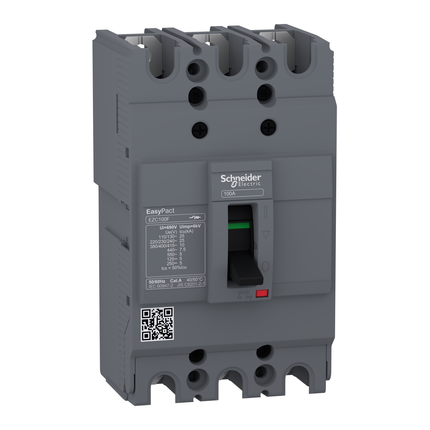

| range of product |
EasyPact |
| Product or component type |
Circuit breaker |
| Device short name |
Easypact EZC100F |
| Circuit breaker name |
Easypact EZC100F |
| Device application |
Distribution |
| Poles description |
3P |
| Protected poles description |
3t |
| Network type |
AC
DC |
| Network frequency |
50/60 Hz |
| [In] rated current |
15 A at 40 °C |
| [Ui] rated insulation voltage |
690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60947-2 |
| [Ue] rated operational voltage |
550 V AC 50/60 Hz conforming to IEC 60947-2
250 V DC conforming to IEC 60947-2 |
| Breaking capacity code |
F |
| Breaking capacity |
25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
5 kA Icu at 125 V DC 1P conforming to IEC 60947-2
5 kA Icu at 250 V DC 2P conforming to IEC 60947-2
5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2
7.5 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity |
12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2
12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
2.5 kA at 125 V DC conforming to IEC 60947-2
2.5 kA at 250 V DC conforming to IEC 60947-2
2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2
5 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
3.75 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Suitability for isolation |
Yes conforming to IEC 60947-2 |
| utilisation category |
Category A |
| Trip unit name |
TM-D |
| Trip unit technology |
Thermal-magnetic |
| Trip unit rating |
15 A at 50 °C |
| Protection type |
Short-circuit protection
Overload protection |
| Pollution degree |
3 conforming to IEC 60664-1
3 conforming to IEC 947-1 |
