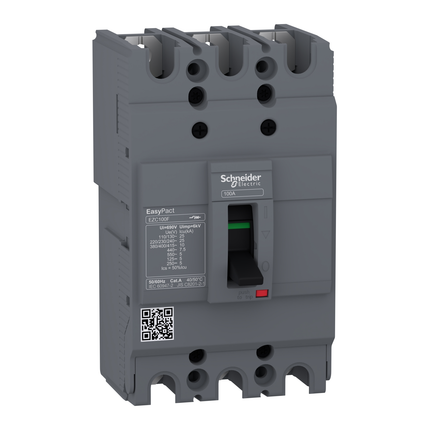

Schneider Electric circuit breaker Easypact EZC100F - TMD - 25 A - 3 poles 3d EZC100F3025

Description

Description

EasyPact EZC100F is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price The breaking capacity (Icu) is 10kA rms at 415VAC 50/60Hz. The operational voltage is 550VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 25A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (75mm x 130mm x 60mm) comes with a variety of optional functions and accessories. Easypact EZC100F is compliant with international standards (IEC 60947, UL 508) and marine certifications.

Specifications

Main
range of product EasyPact
Product or component type Circuit breaker
Device short name Easypact EZC100F
Circuit breaker name Easypact EZC100F
Device application Distribution
Poles description 3P
Protected poles description 3t
Network type DC
AC
Network frequency 50/60 Hz
[In] rated current 25 A at 40 °C
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
[Ue] rated operational voltage 550 V AC 50/60 Hz conforming to IEC 60947-2
250 V DC conforming to IEC 60947-2
Breaking capacity code F
Breaking capacity 25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
5 kA Icu at 125 V DC 1P conforming to IEC 60947-2
5 kA Icu at 250 V DC 2P conforming to IEC 60947-2
5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2
7.5 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity 12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2
12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
2.5 kA at 125 V DC conforming to IEC 60947-2
2.5 kA at 250 V DC conforming to IEC 60947-2
2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2
5 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
3.75 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
Suitability for isolation Yes conforming to IEC 60947-2
utilisation category Category A
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Trip unit rating 25 A at 50 °C
Protection type Short-circuit protection
Overload protection
Pollution degree 3 conforming to IEC 60664-1
3 conforming to IEC 947-1
Complementary
Control type Toggle
Mounting mode Fixed
mounting support Backplate
Upside connection Front
downside connection Front
Mechanical durability 8500 cycles
Electrical durability Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
Connection pitch 25 mm
local signalling Positive contact indication
Neutral protection setting Without protection
earth-leakage protection Without
height 130 mm
Width 75 mm
Depth 60 mm
Environment
Standards JIS C8201-2-2
EN/IEC 60947-2
EN/IEC 60947-1
GB/T 14048.2
IP degree of protection IP20 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -35…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.5 cm
Package 1 Width 8.5 cm
Package 1 Length 14 cm
Package 1 Weight 828 g
Unit Type of Package 2 S02
Number of Units in Package 2 12
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 10.42 kg
Unit Type of Package 3 P12
Number of Units in Package 3 384
Package 3 Height 75 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 331 kg

Product form

Description EasyPact EZC100F is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It... Read more

SKU: EZC100F3025

$27.50 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      Description

      EasyPact EZC100F is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price The breaking capacity (Icu) is 10kA rms at 415VAC 50/60Hz. The operational voltage is 550VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 25A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (75mm x 130mm x 60mm) comes with a variety of optional functions and accessories. Easypact EZC100F is compliant with international standards (IEC 60947, UL 508) and marine certifications.

      Specifications

      Main
      range of product EasyPact
      Product or component type Circuit breaker
      Device short name Easypact EZC100F
      Circuit breaker name Easypact EZC100F
      Device application Distribution
      Poles description 3P
      Protected poles description 3t
      Network type DC
      AC
      Network frequency 50/60 Hz
      [In] rated current 25 A at 40 °C
      [Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
      [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
      [Ue] rated operational voltage 550 V AC 50/60 Hz conforming to IEC 60947-2
      250 V DC conforming to IEC 60947-2
      Breaking capacity code F
      Breaking capacity 25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2
      25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
      5 kA Icu at 125 V DC 1P conforming to IEC 60947-2
      5 kA Icu at 250 V DC 2P conforming to IEC 60947-2
      5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2
      10 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
      10 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2
      7.5 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
      [Ics] rated service breaking capacity 12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2
      12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
      2.5 kA at 125 V DC conforming to IEC 60947-2
      2.5 kA at 250 V DC conforming to IEC 60947-2
      2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2
      5 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
      5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
      3.75 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
      Suitability for isolation Yes conforming to IEC 60947-2
      utilisation category Category A
      Trip unit name TM-D
      Trip unit technology Thermal-magnetic
      Trip unit rating 25 A at 50 °C
      Protection type Short-circuit protection
      Overload protection
      Pollution degree 3 conforming to IEC 60664-1
      3 conforming to IEC 947-1
      Complementary
      Control type Toggle
      Mounting mode Fixed
      mounting support Backplate
      Upside connection Front
      downside connection Front
      Mechanical durability 8500 cycles
      Electrical durability Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
      Connection pitch 25 mm
      local signalling Positive contact indication
      Neutral protection setting Without protection
      earth-leakage protection Without
      height 130 mm
      Width 75 mm
      Depth 60 mm
      Environment
      Standards JIS C8201-2-2
      EN/IEC 60947-2
      EN/IEC 60947-1
      GB/T 14048.2
      IP degree of protection IP20 conforming to IEC 60529
      IK degree of protection IK07 conforming to IEC 62262
      Ambient air temperature for operation -25…70 °C
      Ambient air temperature for storage -35…85 °C
      Packing Units
      Unit Type of Package 1 PCE
      Number of Units in Package 1 1
      Package 1 Height 9.5 cm
      Package 1 Width 8.5 cm
      Package 1 Length 14 cm
      Package 1 Weight 828 g
      Unit Type of Package 2 S02
      Number of Units in Package 2 12
      Package 2 Height 15 cm
      Package 2 Width 30 cm
      Package 2 Length 40 cm
      Package 2 Weight 10.42 kg
      Unit Type of Package 3 P12
      Number of Units in Package 3 384
      Package 3 Height 75 cm
      Package 3 Width 80 cm
      Package 3 Length 120 cm
      Package 3 Weight 331 kg
