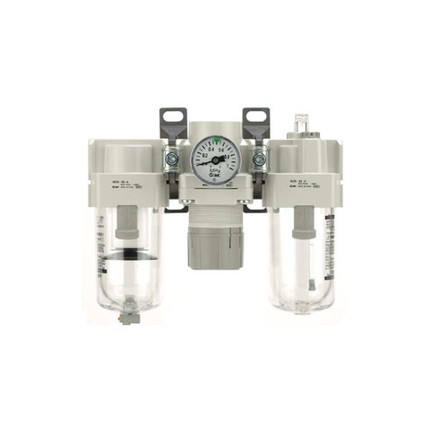

SMC AC10-A to AC40-A, Air Filter, Regulator and Lubricator Combination, AC25-02DG-2-A

VendorSMC

Product form

OVERVIEW SMC'S new AC-A series of modular type F.R.L. unit is available in five sizes and is interchangeable with the... Read more

SKU: AC25-02DG-2-A

$135.02 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Reviews

Name: SMC AC10-A to AC40-A, Air Filter, Regulator and Lubricator Combination, AC25-02DG-2-A
Brand: SMC
SKU: AC25-02DG-2-A
Price: 135.02 USD

SMC AC10-A to AC40-A, Air Filter, Regulator and Lubricator Combination, AC25-02DG-2-A

0 out of 5 stars

This product has no reviews yet

Write a review

?€				Symbol	Description	1
						Body size
						10	20	25	30	40
2			Pipe thread type	Nil	Metric thread (M5)	O	-	-	-	-
				Nil	Rc	-	O	O	O	O
				N Note 1)	NPT	-	O	O	O	O
				F Note 2)	G	-	O	O	O	O
3			e Port size	M5	M5	O	-	-	-	-
				1	1/8	-	O	-	-	-
				2	1/4	-	O	O	O	O
				3	3/8	-	-	O	O	O
				4	1/2	-	-	-	-	O
				6	3/4	-	-	-	-	O
4	Option	a	Float type auto drain	Nil	Without auto drain	O	O	O	O	O
				C Note 4)	N.C. (Normally closed) Drain port is closed when pressure is not applied.	O	O	O	O	O
				D Note 5)	N.O. (Normally open) Drain port is open when pressure is not applied.	-	-	O	O	O
		b	Pressure gauge Note 6)	Nil	Without pressure gauge	O	O	O	O	O
				G	Round type pressure gauge (without limit indicator)	O	-	-	-	-
				G	Round type pressure gauge (with limit indicator)	-	O	O	O	O
				M	Round type pressure gauge (with color zone)	-	O	O	O	O
5	Attachment	c	Check valve	Nil	Without attachment	O	O	O	O	O
		c	Check valve	K	Mounting position: AF+AR+K+AL	-	O	O	O	O
		d	Pressure switch	Nil	Without attachment	O	O	O	O	O
		d	Pressure switch	S Note 8)	Mounting position: AF+AR+S+AL	-	O	O	O	O
		e	T-spacer	Nil	Without attachment	O	O	O	O	O
		e	T-spacer	T Note 8)	Mounting position: AF+T+AR+AL	O	O	O	O	O
		f	Pressure relief 3 port valve	Nil	Without attachment	O	O	O	O	O
		f	Pressure relief 3 port valve	V	Mounting position: AF+AR+AL+V	-	O	O	O	O
6	Semi- Standard	g	Set pressure ^Note ⁹⁾	Nil	0.05 to 0.7 MPa setting	O	O	O	O	O
		g	Set pressure ^Note ⁹⁾	1	0.02 to 0.2 MPa setting	O	O	O	O	O
		h	Bowl Note 10)	Nil	Polycarbonate bowl	O	O	O	O	O
				2	Metal bowl	O	O	O	O	O
				6	Nylon bowl	O	O	O	O	O
				8	Metal bowl with level gauge	-	-	O	O	O
				C	With bowl guard	-	O	-	-	-
				6C	With bowl guard (Nylon bowl)	-	O	-	-	-
		i	Air filter drain port Note 13)	Nil	With drain cock	O	O	O	O	O
				J Note 14)	Drain guide 1/8	-	O	-	-	-
				J Note 14)	Drain guide 1/4	-	-	O	O	O
				W Note 15)	Drain cock with barb fitting (for ø6 x ø4 nylon tube)	-	-	O	O	O
