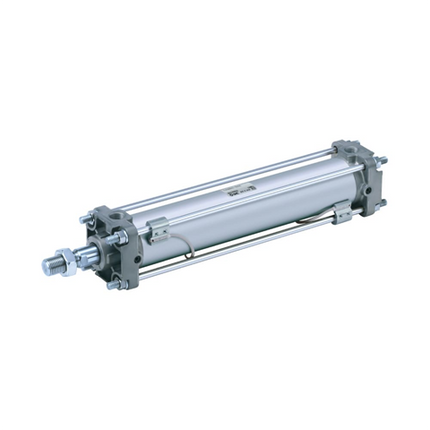

SMC CA2-Z Series Tie-Rod Cylinder, Double Acting, Single Rod, CA2B63-175Z

Description

OVERVIEW


  • Mass reduction by up to 15%
  • Easy air cushion control
  • Mountable from small auto switches to magnetic field resistant auto switches
  • Set the rod end bracket and oscillation bracket attachment part number (reducing the trouble of ordering separately)
  •  Attach auto switch (CDA2) Series: CDA2, CDA2W)



Specification item model symbol Specification information
With auto switch - Without auto switch
installation support B Basic type
tube material - aluminum tube
tube inner diameter 63 Bore size 63mm
Types of port screws - Rc
cylinder stroke 175 175mm
Cylinder additional symbol - No bellows, air cushion
Stroke adjustment symbol - doesn't exist
dual stroke mark - No dual stroke mark
cylinder stroke 2 - Cylinder stroke 2 None
Cylinder additional symbol 2 - No bellows, air cushion
rocking support bracket - no metal fittings
rod end bracket - no metal fittings
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard

Product form

OVERVIEW Mass reduction by up to 15% Easy air cushion control Mountable from small auto switches to magnetic field resistant... Read more

SKU: CA2B63-175Z

$144.29 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      • Mass reduction by up to 15%
      • Easy air cushion control
      • Mountable from small auto switches to magnetic field resistant auto switches
      • Set the rod end bracket and oscillation bracket attachment part number (reducing the trouble of ordering separately)
      •  Attach auto switch (CDA2) Series: CDA2, CDA2W)



      Specification item model symbol Specification information
      With auto switch - Without auto switch
      installation support B Basic type
      tube material - aluminum tube
      tube inner diameter 63 Bore size 63mm
      Types of port screws - Rc
      cylinder stroke 175 175mm
      Cylinder additional symbol - No bellows, air cushion
      Stroke adjustment symbol - doesn't exist
      dual stroke mark - No dual stroke mark
      cylinder stroke 2 - Cylinder stroke 2 None
      Cylinder additional symbol 2 - No bellows, air cushion
      rocking support bracket - no metal fittings
      rod end bracket - no metal fittings
      auto switch - Without auto switch
      Auto switch additional symbol - 2 with or without
      Custom made specifications - standard
