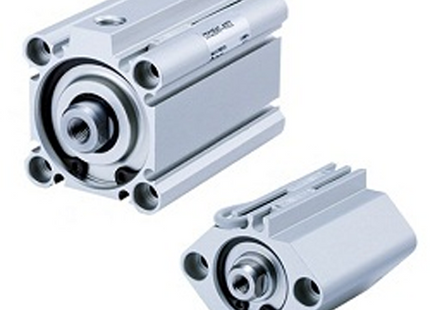

SMC CDQ2A63-45DCMZ Compact Cylinder, CQ2-Z

Description

OVERVIEW



SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.

  • Double acting, single rod, compact cylinder
  • Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
  • Standard stroke range *: 5 to 100
  • Port threads: M *; Rc, NPT or G *
  • Auto switch capable



SPECIFICATIONS


Compact Cylinder Type Standard
Bore Diameter 63 mm
Stroke 45 mm
Piston Action Double-Acting
Mounting Type Both Ends Tapped
Rod Type Single Rod
Cylinder Series CQ2


Specification — CDQ2A63-45DCMZ

Magnet Built-in magnet
Mounting Both ends tapped
Bore 63mm
Stroke 45mm
Body option With rubber bumper, rod end male thread
Auto switch Without auto switch
Port size 1/4
Fluid Air
Action Double acting, single rod
Rod end male thread M18X1.5
Min. operating pressure 0.05 MPa
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Lubrication Non-lube
Fluid temp. min -10 °C
Fluid temp. max 60 °C
Weight 979 g

Specification values above are for model code CDQ2A63-45DCMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW   SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches... Read more

SKU: CDQ2A63-45DCMZ

$81.19 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW



    SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.

    • Double acting, single rod, compact cylinder
    • Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
    • Standard stroke range *: 5 to 100
    • Port threads: M *; Rc, NPT or G *
    • Auto switch capable



    SPECIFICATIONS


    Compact Cylinder Type Standard
    Bore Diameter 63 mm
    Stroke 45 mm
    Piston Action Double-Acting
    Mounting Type Both Ends Tapped
    Rod Type Single Rod
    Cylinder Series CQ2


    Specification — CDQ2A63-45DCMZ

    Magnet Built-in magnet
    Mounting Both ends tapped
    Bore 63mm
    Stroke 45mm
    Body option With rubber bumper, rod end male thread
    Auto switch Without auto switch
    Port size 1/4
    Fluid Air
    Action Double acting, single rod
    Rod end male thread M18X1.5
    Min. operating pressure 0.05 MPa
    Max. operating pressure 1.0 MPa
    Proof pressure 1.5 MPa
    Lubrication Non-lube
    Fluid temp. min -10 °C
    Fluid temp. max 60 °C
    Weight 979 g

    Specification values above are for model code CDQ2A63-45DCMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
