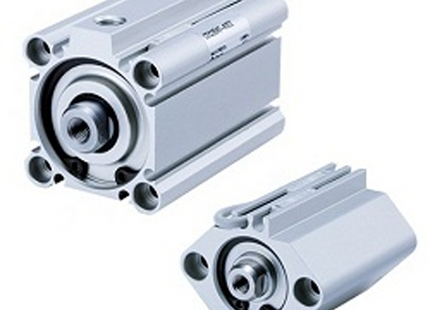

SMC CDQ2B20-15DZ cyl, compact, CQ2-Z COMPACT CYLINDER

Description





OVERVIEW

SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.

  • Double acting, single rod, compact cylinder
  • Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
  • Standard stroke range *: 5 to 100
  • Port threads: M *; Rc, NPT or G *
  • Auto switch capable

      Specification — CDQ2B20-15DZ

      Magnet Built-in magnet
      Mounting Through hole (standard)
      Bore 20mm
      Stroke 15mm
      Body option Standard (rod end female thread)
      Auto switch Without auto switch
      Port size M5X0.8
      Fluid Air
      Action Double acting, single rod
      Min. operating pressure 0.05 MPa
      Max. operating pressure 1.0 MPa
      Proof pressure 1.5 MPa
      Lubrication Non-lube
      Rod end female thread M5X0.8
      Fluid temp. min -10 °C
      Fluid temp. max 60 °C
      Weight 121 g

      Specification values above are for model code CDQ2B20-15DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

      Product form

          OVERVIEW SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto... Read more

      SKU: CDQ2B20-15DZ

      $25.96 Excl. VAT

        • Ships within 5–10 business days
        • Ships from South Korea
        • Export packing available
        • Worldwide shipping
        • Secure payments Paypal

        Description





        OVERVIEW

        SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.

        • Double acting, single rod, compact cylinder
        • Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
        • Standard stroke range *: 5 to 100
        • Port threads: M *; Rc, NPT or G *
        • Auto switch capable

            Specification — CDQ2B20-15DZ

            Magnet Built-in magnet
            Mounting Through hole (standard)
            Bore 20mm
            Stroke 15mm
            Body option Standard (rod end female thread)
            Auto switch Without auto switch
            Port size M5X0.8
            Fluid Air
            Action Double acting, single rod
            Min. operating pressure 0.05 MPa
            Max. operating pressure 1.0 MPa
            Proof pressure 1.5 MPa
            Lubrication Non-lube
            Rod end female thread M5X0.8
            Fluid temp. min -10 °C
            Fluid temp. max 60 °C
            Weight 121 g

            Specification values above are for model code CDQ2B20-15DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
