SMC CDQ2B20-40DCZ cyl, compact, CQ2-Z COMPACT CYLINDER

Description





OVERVIEW

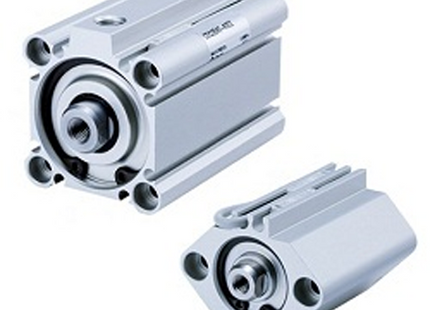

SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.

  • Double acting, single rod, compact cylinder
  • Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
  • Standard stroke range *: 5 to 100
  • Port threads: M *; Rc, NPT or G *
  • Auto switch capable

        Specification — CDQ2B20-40DCZ

        Magnet Built-in magnet
        Mounting Through hole (standard)
        Bore 20mm
        Stroke 40mm
        Body option With rubber bumper
        Auto switch Without auto switch
        Port size M5X0.8
        Fluid Air
        Action Double acting, single rod
        Min. operating pressure 0.05 MPa
        Max. operating pressure 1.0 MPa
        Proof pressure 1.5 MPa
        Lubrication Non-lube
        Rod end female thread M5X0.8
        Fluid temp. min -10 °C
        Fluid temp. max 60 °C
        Weight 180 g

        Specification values above are for model code CDQ2B20-40DCZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

        Product form

            OVERVIEW SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto... Read more

        SKU: CDQ2B20-40DCZ

        $31.08 Excl. VAT

          • Ships within 5–10 business days
          • Ships from South Korea
          • Export packing available
          • Worldwide shipping
          • Secure payments Paypal

          Description





          OVERVIEW

          SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.

          • Double acting, single rod, compact cylinder
          • Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
          • Standard stroke range *: 5 to 100
          • Port threads: M *; Rc, NPT or G *
          • Auto switch capable

                Specification — CDQ2B20-40DCZ

                Magnet Built-in magnet
                Mounting Through hole (standard)
                Bore 20mm
                Stroke 40mm
                Body option With rubber bumper
                Auto switch Without auto switch
                Port size M5X0.8
                Fluid Air
                Action Double acting, single rod
                Min. operating pressure 0.05 MPa
                Max. operating pressure 1.0 MPa
                Proof pressure 1.5 MPa
                Lubrication Non-lube
                Rod end female thread M5X0.8
                Fluid temp. min -10 °C
                Fluid temp. max 60 °C
                Weight 180 g

                Specification values above are for model code CDQ2B20-40DCZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
