SMC CDQ2B20-45DCMZ cyl, compact, CQ2-Z COMPACT CYLINDER

Description





OVERVIEW

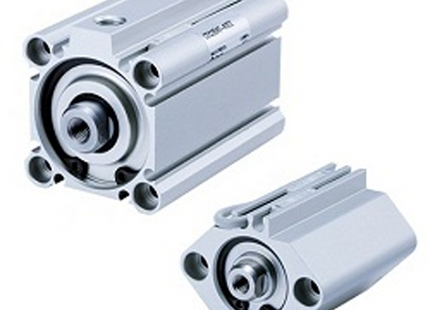

SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.

  • Double acting, single rod, compact cylinder
  • Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
  • Standard stroke range *: 5 to 100
  • Port threads: M *; Rc, NPT or G *
  • Auto switch capable

          Specification — CDQ2B20-45DCMZ

          Magnet Built-in magnet
          Mounting Through hole (standard)
          Bore 20mm
          Stroke 45mm
          Body option With rubber bumper, rod end male thread
          Auto switch Without auto switch
          Port size M5X0.8
          Fluid Air
          Action Double acting, single rod
          Rod end male thread M8X1.25
          Min. operating pressure 0.05 MPa
          Max. operating pressure 1.0 MPa
          Proof pressure 1.5 MPa
          Lubrication Non-lube
          Fluid temp. min -10 °C
          Fluid temp. max 60 °C
          Weight 202 g

          Specification values above are for model code CDQ2B20-45DCMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

          Product form

              OVERVIEW SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto... Read more

          SKU: CDQ2B20-45DCMZ

          $32.30 Excl. VAT

            • Ships within 5–10 business days
            • Ships from South Korea
            • Export packing available
            • Worldwide shipping
            • Secure payments Paypal

            Description





            OVERVIEW

            SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.

            • Double acting, single rod, compact cylinder
            • Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
            • Standard stroke range *: 5 to 100
            • Port threads: M *; Rc, NPT or G *
            • Auto switch capable

                    Specification — CDQ2B20-45DCMZ

                    Magnet Built-in magnet
                    Mounting Through hole (standard)
                    Bore 20mm
                    Stroke 45mm
                    Body option With rubber bumper, rod end male thread
                    Auto switch Without auto switch
                    Port size M5X0.8
                    Fluid Air
                    Action Double acting, single rod
                    Rod end male thread M8X1.25
                    Min. operating pressure 0.05 MPa
                    Max. operating pressure 1.0 MPa
                    Proof pressure 1.5 MPa
                    Lubrication Non-lube
                    Fluid temp. min -10 °C
                    Fluid temp. max 60 °C
                    Weight 202 g

                    Specification values above are for model code CDQ2B20-45DCMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
