Description

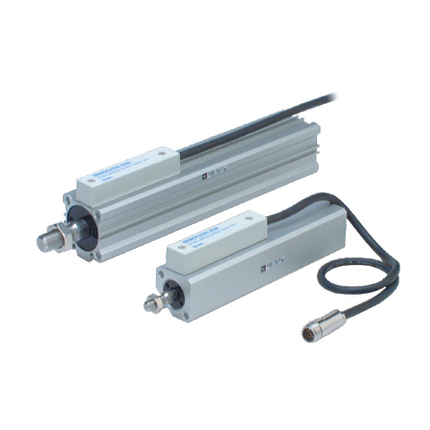

SMC CE1B12-25-A73LS — CE1 Series Scale Cylinder. This code specifies 12mm bore, 25mm stroke, double acting, single rod.
Specification — CE1B12-25-A73LS
| Bore |
12mm |
| Stroke |
25mm |
| Action |
Double acting, single rod |
| Port thread |
M |
| Proof pressure |
1.5 MPa |
| Min. operating pressure |
0.07 MPa |
| Max. operating pressure |
1.0 MPa |
| Lubrication |
Non-lube |
| Weight |
328 g |
Specification values above are for model code CE1B12-25-A73LS as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CE1 series
- Cylinder/scale cylinder that can be measured while the rod is moving
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
