Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Set trunnion mounting tab-less shape to basic type
Set rod end bracket and swing bracket attached part number (reduces the trouble of ordering separately)
Auto With switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	Z	Basic type (without female thread for trunnion installation)
form	N	rubber cushion
tube inner diameter	40	tube inner diameter 40mm
Types of port screws	-	Rubber cushion: Rc; Air cushion: M5X0.8/Rc
cylinder stroke	150	Cylinder stroke 150mm
Rod end screw shape	-	rod end male thread
Stroke adjustment symbol	-	doesn't exist
Cylinder additional symbol	-	no bellows
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	Rod end male thread, no bellows
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW Standardized rod end shape female thread Improved auto switch operability, easy position adjustment Set trunnion mounting tab-less shape to... Read more

SKU: CDG1ZN40-150Z

$71.67 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Set trunnion mounting tab-less shape to basic type
Set rod end bracket and swing bracket attached part number (reduces the trouble of ordering separately)
Auto With switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	Z	Basic type (without female thread for trunnion installation)
form	N	rubber cushion
tube inner diameter	40	tube inner diameter 40mm
Types of port screws	-	Rubber cushion: Rc; Air cushion: M5X0.8/Rc
cylinder stroke	150	Cylinder stroke 150mm
Rod end screw shape	-	rod end male thread
Stroke adjustment symbol	-	doesn't exist
Cylinder additional symbol	-	no bellows
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	Rod end male thread, no bellows
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

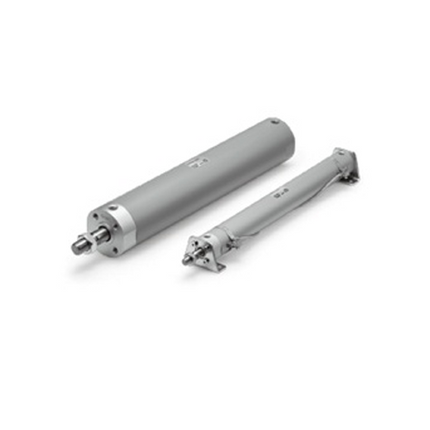

Name: SMC CG1-Z Series Air Cylinder, Round Body, Double Acting, Single Rod, CDG1ZN40-150Z
Brand: SMC
SKU: CDG1ZN40-150Z
Price: 71.67 USD

SMC CG1-Z Series Air Cylinder, Round Body, Double Acting, Single Rod, CDG1ZN40-150Z
