Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Set trunnion mounting tab-less shape to basic type
Set rod end bracket and swing bracket attached part number (reduces the trouble of ordering separately)
Auto With switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	Z	Basic type (without female thread for trunnion installation)
form	N	rubber cushion
tube inner diameter	25	tube inner diameter 25mm
cylinder stroke	50	50mm
rod end screw	-	rod end male thread
Stroke adjustment symbol	-	doesn't exist
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
rod end screw 2	-	rod end male thread
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW Standardized rod end shape female thread Improved auto switch operability, easy position adjustment Set trunnion mounting tab-less shape to... Read more

SKU: CDG1KZN25-50Z

$57.13 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Shipped today? Order within: Nov 25, 2024 17:00:00 +0900

Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Set trunnion mounting tab-less shape to basic type
Set rod end bracket and swing bracket attached part number (reduces the trouble of ordering separately)
Auto With switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	Z	Basic type (without female thread for trunnion installation)
form	N	rubber cushion
tube inner diameter	25	tube inner diameter 25mm
cylinder stroke	50	50mm
rod end screw	-	rod end male thread
Stroke adjustment symbol	-	doesn't exist
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
rod end screw 2	-	rod end male thread
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

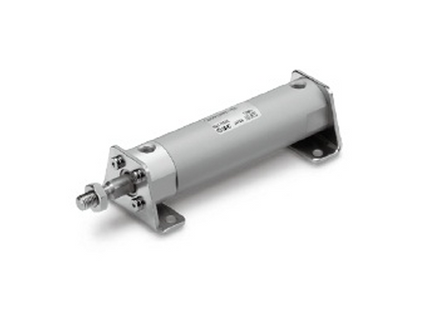

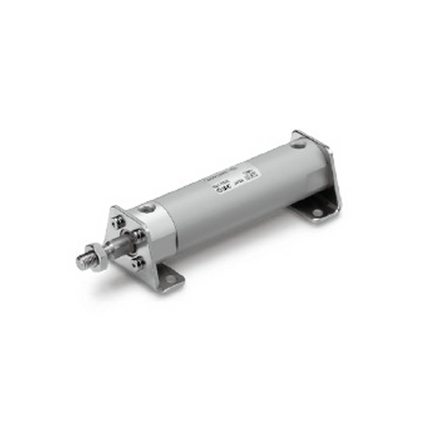

Name: SMC CG1K-Z Series Air Cylinder, Round Body, Double Acting, Non-Rotating, CDG1KZN25-50Z
Brand: SMC
SKU: CDG1KZN25-50Z
Price: 57.13 USD

SMC CG1K-Z Series Air Cylinder, Round Body, Double Acting, Non-Rotating, CDG1KZN25-50Z
