Description

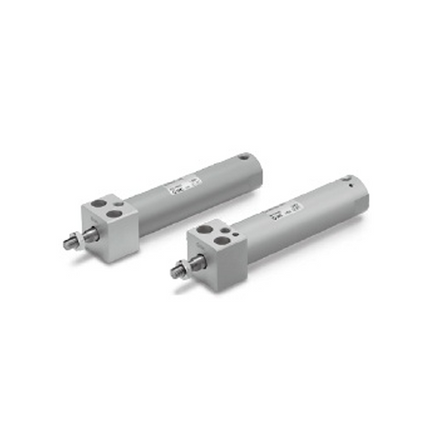

SMC CDG1RA63-200Z — CG1R-Z Series Air Cylinder, Round Body, Double Acting, Direct Mounting. This code specifies 63mm bore, 200mm stroke, double acting, without auto switch.
Specification — CDG1RA63-200Z
| Bore |
63mm |
| Stroke |
200mm |
| Auto switch |
Without auto switch |
| Port size |
1/4 |
| Fluid |
Air |
| Action |
Double acting |
| Port thread |
Rc |
| Rod end male thread |
M18X1.5 |
| Min. operating pressure |
0.05 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Fluid temp. min |
-10 ℃ |
| Fluid temp. max |
60 ℃ |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Weight |
2,000 g |
Specification values above are for model code CDG1RA63-200Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CG1R-Z series
- Standardized rod end shape female thread
- Improved auto switch operability, easy position adjustment
- Set trunnion mounting tab-less shape to basic type
- Set rod end bracket and swing bracket attached part number (reduces the trouble of ordering separately)
- Auto With switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
