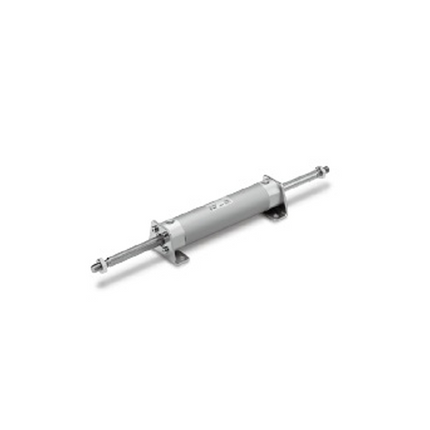

Name: SMC CG1W-Z Series Air Cylinder, Round Body, Double Acting, Double Rod, CDG1WBA50-200Z
Brand: SMC
SKU: CDG1WBA50-200Z
Price: 77.13 USD
Availability: InStock

SMC CG1W-Z Series Air Cylinder, Round Body, Double Acting, Double Rod, CDG1WBA50-200Z

VendorSMC

Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Set trunnion mounting tab-less shape to basic type
Set rod end bracket and swing bracket attached part number (reduces the trouble of ordering separately)
Auto With switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	B	Basic type
form	A	air cushion
tube inner diameter	50	tube inner diameter 50mm
cylinder stroke	200	cylinder stroke 200mm
Cylinder additional symbol	-	Rod end male thread, no bellows
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDG1WBA50-200Z

Bore	50mm
Stroke	200mm
Auto switch	Without auto switch
Port size	1/4
Fluid	Air
Action	Double acting
Rod end male thread	M18X1.5
Min. operating pressure	0.08 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Lubrication	Non-lube
Piston speed min	50 mm/s
Piston speed max	1000 mm/s
Allowable kinetic energy	3.40 J
Weight	2,000 g

Specification values above are for model code CDG1WBA50-200Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
