Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Set trunnion mounting tab-less shape to basic type
Set rod end bracket and swing bracket attached part number (reduces the trouble of ordering separately)
Auto With switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	B	Basic type
form	A	air cushion
tube inner diameter	50	tube inner diameter 50mm
cylinder stroke	250	Cylinder stroke 250mm
Cylinder additional symbol	-	Rod end male thread, no bellows
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW Standardized rod end shape female thread Improved auto switch operability, easy position adjustment Set trunnion mounting tab-less shape to... Read more

SKU: Double Acting/Double Rod

$118.88 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Set trunnion mounting tab-less shape to basic type
Set rod end bracket and swing bracket attached part number (reduces the trouble of ordering separately)
Auto With switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	B	Basic type
form	A	air cushion
tube inner diameter	50	tube inner diameter 50mm
cylinder stroke	250	Cylinder stroke 250mm
Cylinder additional symbol	-	Rod end male thread, no bellows
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

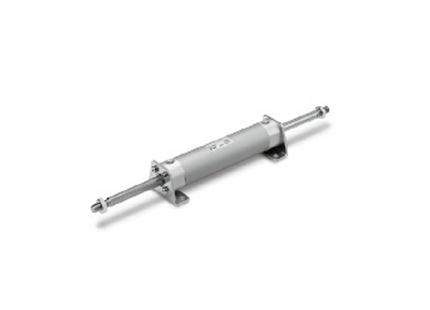

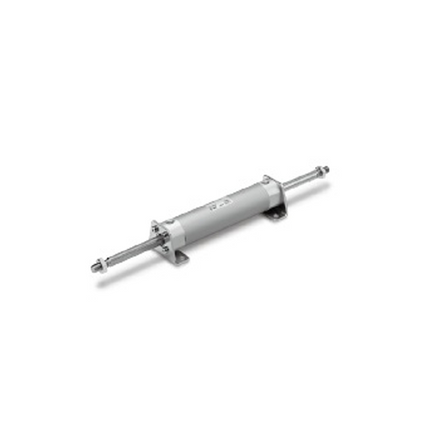

Name: SMC CG1W-Z Series Air Cylinder, Round Body, Double Acting, Double Rod, CDG1WBA50-250Z
Brand: SMC
SKU: Double Acting/Double Rod
Price: 118.88 USD
Availability: InStock

SMC CG1W-Z Series Air Cylinder, Round Body, Double Acting, Double Rod, CDG1WBA50-250Z
