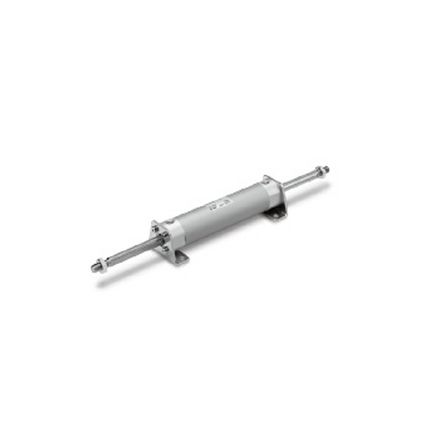

SMC CG1W-Z Series Air Cylinder, Round Body, Double Acting, Double Rod, CDG1WZN40-125Z

Description

OVERVIEW


  • Standardized rod end shape female thread
  • Improved auto switch operability, easy position adjustment
  • Set trunnion mounting tab-less shape to basic type
  • Set rod end bracket and swing bracket attached part number (reduces the trouble of ordering separately)
  • Auto With switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)



Specification item model symbol Specification information
With auto switch D With auto switch
Mounting support type Z Basic type (without female thread for trunnion installation)
form N rubber cushion
tube inner diameter 40 tube inner diameter 40mm
cylinder stroke 125 Cylinder stroke 125mm
Cylinder additional symbol - Rod end male thread, no bellows
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard

Product form

OVERVIEW Standardized rod end shape female thread Improved auto switch operability, easy position adjustment Set trunnion mounting tab-less shape to... Read more

SKU: CDG1WZN40-125Z

$92.01 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Nov 25, 2024 17:00:00 +0900

    Description

    OVERVIEW


    • Standardized rod end shape female thread
    • Improved auto switch operability, easy position adjustment
    • Set trunnion mounting tab-less shape to basic type
    • Set rod end bracket and swing bracket attached part number (reduces the trouble of ordering separately)
    • Auto With switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)



    Specification item model symbol Specification information
    With auto switch D With auto switch
    Mounting support type Z Basic type (without female thread for trunnion installation)
    form N rubber cushion
    tube inner diameter 40 tube inner diameter 40mm
    cylinder stroke 125 Cylinder stroke 125mm
    Cylinder additional symbol - Rod end male thread, no bellows
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard
