Description

OVERVIEW

Both sides foot and head side flange are set on the mounting bracket.
Auto switch operability is improved and position adjustment is easy
Auto switch rail mounting type part number setting is set. Zoom
With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	B	Basic type
tube inner diameter	10	tube inner diameter 10mm
cylinder stroke	150	Cylinder stroke 150mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol	-	rubber cushion
Port location on head cover	R	axial
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Auto switch mounting type	B	band attached
Custom made specifications	-	standard

Product form

OVERVIEW Both sides foot and head side flange are set on the mounting bracket. Auto switch operability is improved and... Read more

SKU: CDJ2B10-150RZ-B

$31.29 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Shipped today? Order within: Nov 25, 2024 17:00:00 +0900

Description

OVERVIEW

Both sides foot and head side flange are set on the mounting bracket.
Auto switch operability is improved and position adjustment is easy
Auto switch rail mounting type part number setting is set. Zoom
With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	B	Basic type
tube inner diameter	10	tube inner diameter 10mm
cylinder stroke	150	Cylinder stroke 150mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol	-	rubber cushion
Port location on head cover	R	axial
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Auto switch mounting type	B	band attached
Custom made specifications	-	standard

Reviews

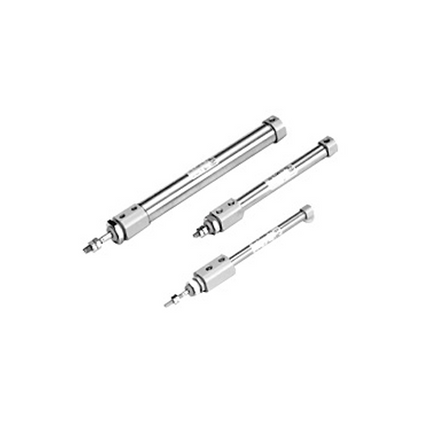

Name: SMC CJ2-Z Series Air Cylinder, Round Body, Double Acting, Single Rod, CDJ2B10-150RZ-B
