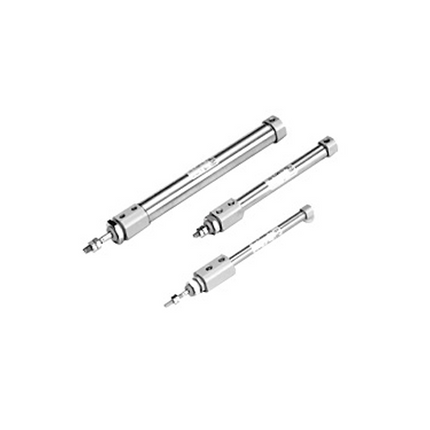

SMC CJ2-Z Series Air Cylinder, Round Body, Double Acting, Single Rod, CDJ2D16-75Z-B

Description

OVERVIEW


  • Both sides foot and head side flange are set on the mounting bracket.
  • Auto switch operability is improved and position adjustment is easy
  • Auto switch rail mounting type part number setting is set. Zoom
  • With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)



Specification item model symbol Specification information
With auto switch D With auto switch
Mounting support type D Double clevis type
tube inner diameter 16 tube inner diameter 16mm
cylinder stroke 75 Cylinder stroke 75mm
dual stroke mark - No dual stroke mark
cylinder stroke 2 - Cylinder stroke 2 None
Cylinder additional symbol - rubber cushion
Port location on head cover - 90° about axis
rocking support bracket - no metal fittings
rod end bracket - no metal fittings
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Auto switch mounting type B band attached
Custom made specifications - standard

Product form

OVERVIEW Both sides foot and head side flange are set on the mounting bracket. Auto switch operability is improved and... Read more

SKU: CDJ2D16-75Z-B

$29.39 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      • Both sides foot and head side flange are set on the mounting bracket.
      • Auto switch operability is improved and position adjustment is easy
      • Auto switch rail mounting type part number setting is set. Zoom
      • With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)



      Specification item model symbol Specification information
      With auto switch D With auto switch
      Mounting support type D Double clevis type
      tube inner diameter 16 tube inner diameter 16mm
      cylinder stroke 75 Cylinder stroke 75mm
      dual stroke mark - No dual stroke mark
      cylinder stroke 2 - Cylinder stroke 2 None
      Cylinder additional symbol - rubber cushion
      Port location on head cover - 90° about axis
      rocking support bracket - no metal fittings
      rod end bracket - no metal fittings
      auto switch - Without auto switch
      Auto switch additional symbol - 2 with or without
      Auto switch mounting type B band attached
      Custom made specifications - standard
