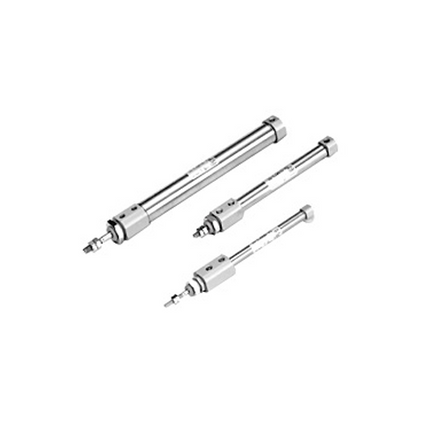

Name: SMC CJ2-Z Series Air Cylinder, Round Body, Double Acting, Single Rod, CDJ2E16-150AZ-B
Brand: SMC
SKU: CDJ2E16-150AZ-B
Price: 40.77 USD
Availability: InStock

SMC CJ2-Z Series Air Cylinder, Round Body, Double Acting, Single Rod, CDJ2E16-150AZ-B

VendorSMC

Description

OVERVIEW

Both sides foot and head side flange are set on the mounting bracket.
Auto switch operability is improved and position adjustment is easy
Auto switch rail mounting type part number setting is set. Zoom
With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	E	Boss attached on both sides
tube inner diameter	16	tube inner diameter 16mm
cylinder stroke	150	Cylinder stroke 150mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol	A	air cushion
Port location on head cover	-	90° about axis
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Auto switch mounting type	B	band attached
Custom made specifications	-	standard

Specification — CDJ2E16-150AZ-B

Bore	16mm
Stroke	150mm
Auto switch	Without auto switch
Port size	M5X0.8
Fluid	Air
Action	Double acting
Port thread	M
Rod end male thread	M5X0.8
Min. operating pressure	0.1 MPa
Max. operating pressure	0.7 MPa
Proof pressure	1 MPa
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Lubrication	Non-lube
Piston speed min	50 mm/s
Piston speed max	1000 mm/s
Weight	129 g

Specification values above are for model code CDJ2E16-150AZ-B as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
