Description

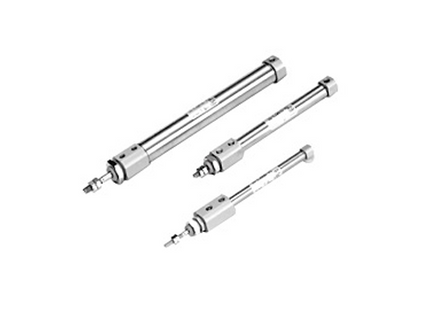

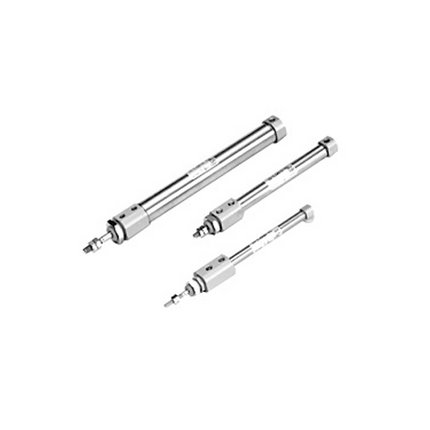

SMC CDJ2F16-60Z-A93-B — CJ2-Z Series Air Cylinder, Round Body, Double Acting, Single Rod. This code specifies 16mm bore, 60mm stroke, double acting.
Specification — CDJ2F16-60Z-A93-B
| Bore |
16mm |
| Stroke |
60mm |
| Port size |
M5X0.8 |
| Fluid |
Air |
| Action |
Double acting |
| Port thread |
M |
| Rod end male thread |
M5X0.8 |
| Min. operating pressure |
0.06 MPa |
| Max. operating pressure |
0.7 MPa |
| Proof pressure |
1 MPa |
| Fluid temp. min |
-10 ℃ |
| Fluid temp. max |
60 ℃ |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Weight |
116 g |
Specification values above are for model code CDJ2F16-60Z-A93-B as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CJ2-Z series
- Both sides foot and head side flange are set on the mounting bracket.
- Auto switch operability is improved and position adjustment is easy
- Auto switch rail mounting type part number setting is set. Zoom
- With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
