Description

OVERVIEW

Series CJ2 miniature cylinders available in spring return, spring extend, or double acting offer stainless steel tubing and stainless steel rods. The series is available in bore sizes 6, 10, 16mm and stroke lengths from 1/2in. to 8in.. Mounting options include basic, foot, front flange, and double rear clevis. Series CJ2 is auto switch capable

Both sides foot and head side flange are set on the mounting bracket.
Auto switch operability is improved and position adjustment is easy
Auto switch rail mounting type part number setting is set. Zoom
With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)

Specification item	model symbol	Specification information
With auto switch	-	Without auto switch
Mounting support type	B	Basic type
tube inner diameter	10	tube inner diameter 10mm
cylinder stroke	60	cylinder stroke 60mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol	A	air cushion
Port location on head cover	-	90° about axis
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Auto switch mounting type	-	doesn't exist
Custom made specifications	-	standard

Product form

OVERVIEW Series CJ2 miniature cylinders available in spring return, spring extend, or double acting offer stainless steel tubing and stainless... Read more

SKU: CJ2B10-60AZ

$33.35 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Shipped today? Order within: Nov 25, 2024 17:00:00 +0900

Description

OVERVIEW

Series CJ2 miniature cylinders available in spring return, spring extend, or double acting offer stainless steel tubing and stainless steel rods. The series is available in bore sizes 6, 10, 16mm and stroke lengths from 1/2in. to 8in.. Mounting options include basic, foot, front flange, and double rear clevis. Series CJ2 is auto switch capable

Both sides foot and head side flange are set on the mounting bracket.
Auto switch operability is improved and position adjustment is easy
Auto switch rail mounting type part number setting is set. Zoom
With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)

Specification item	model symbol	Specification information
With auto switch	-	Without auto switch
Mounting support type	B	Basic type
tube inner diameter	10	tube inner diameter 10mm
cylinder stroke	60	cylinder stroke 60mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol	A	air cushion
Port location on head cover	-	90° about axis
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Auto switch mounting type	-	doesn't exist
Custom made specifications	-	standard

Reviews

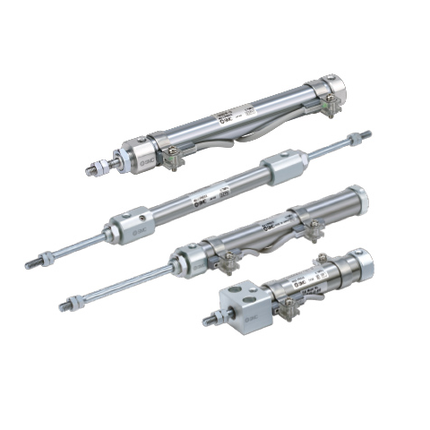

Name: SMC CJ2-Z Series Air Cylinder, Round Body, Double Acting, Single Rod, CJ2B10-60AZ
Brand: SMC
SKU: CJ2B10-60AZ
Price: 33.35 USD

SMC CJ2-Z Series Air Cylinder, Round Body, Double Acting, Single Rod, CJ2B10-60AZ
