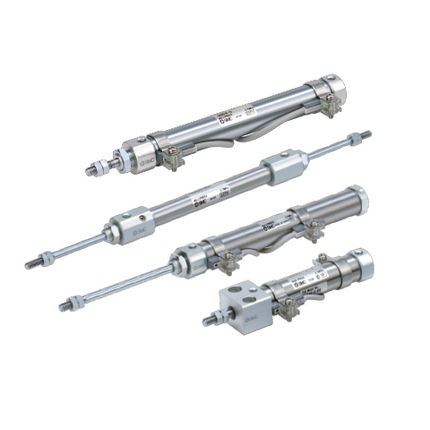

Name: SMC CJ2-Z Series Air Cylinder, Round Body, Double Acting, Single Rod, CJ2B6-30Z
Brand: SMC
SKU: CJ2B6-30Z
Price: 12.23 USD
Availability: InStock

SMC CJ2-Z Series Air Cylinder, Round Body, Double Acting, Single Rod, CJ2B6-30Z

VendorSMC

Description

OVERVIEW

Series CJ2 miniature cylinders available in spring return, spring extend, or double acting offer stainless steel tubing and stainless steel rods. The series is available in bore sizes 6, 10, 16mm and stroke lengths from 1/2in. to 8in.. Mounting options include basic, foot, front flange, and double rear clevis. Series CJ2 is auto switch capable

Both sides foot and head side flange are set on the mounting bracket.
Auto switch operability is improved and position adjustment is easy
Auto switch rail mounting type part number setting is set. Zoom
With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)

Specification item	model symbol	Specification information
With auto switch	-	Without auto switch
Mounting support type	B	Basic type
tube inner diameter	6	tube inner diameter 6mm
cylinder stroke	30	cylinder stroke 30mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol	-	rubber cushion
Port location on head cover	-	90° about axis
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Auto switch mounting type	-	doesn't exist
Custom made specifications	-	standard

Specification — CJ2B6-30Z

Bore	6mm
Stroke	30mm
Auto switch	Without auto switch
Port size	M5X0.8
Fluid	Air
Action	Double acting
Port thread	M
Rod end male thread	M3X0.5
Min. operating pressure	0.12 MPa
Max. operating pressure	0.7 MPa
Proof pressure	1 MPa
Fluid temp. min	-10 ℃
Fluid temp. max	70 ℃
Ambient temp. min	-10 ℃
Ambient temp. max	70 ℃
Lubrication	Non-lube
Weight	24 g

Specification values above are for model code CJ2B6-30Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW Series CJ2 miniature cylinders available in spring return, spring extend, or double acting offer stainless steel tubing and stainless... Read more

SKU: CJ2B6-30Z

$12.23 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping
