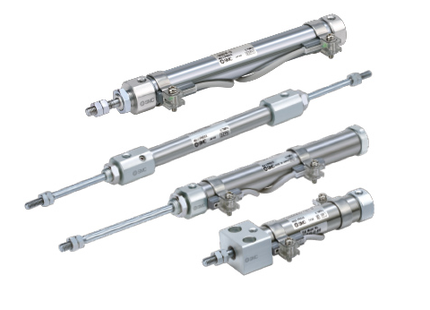

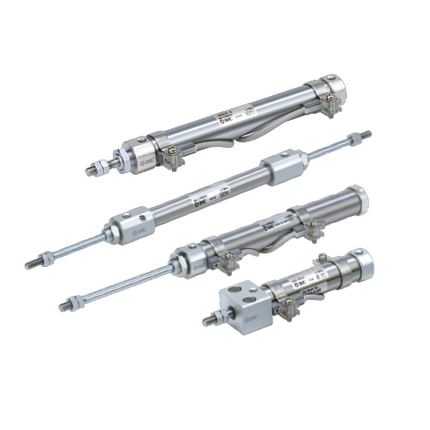

SMC CJ2-Z Series Air Cylinder, Round Body, Double Acting, Single Rod, CJ2B6-45Z

Description

OVERVIEW


Series CJ2 miniature cylinders available in spring return, spring extend, or double acting offer stainless steel tubing and stainless steel rods. The series is available in bore sizes 6, 10, 16mm and stroke lengths from 1/2in. to 8in.. Mounting options include basic, foot, front flange, and double rear clevis. Series CJ2 is auto switch capable
  • Both sides foot and head side flange are set on the mounting bracket.
  • Auto switch operability is improved and position adjustment is easy
  • Auto switch rail mounting type part number setting is set. Zoom
  • With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)



Specification item model symbol Specification information
With auto switch - Without auto switch
Mounting support type B Basic type
tube inner diameter 6 tube inner diameter 6mm
cylinder stroke 45 cylinder stroke 45mm
dual stroke mark - No dual stroke mark
cylinder stroke 2 - Cylinder stroke 2 None
Cylinder additional symbol - rubber cushion
Port location on head cover - 90° about axis
rocking support bracket - no metal fittings
rod end bracket - no metal fittings
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Auto switch mounting type - doesn't exist
Custom made specifications - standard

Product form

OVERVIEW Series CJ2 miniature cylinders available in spring return, spring extend, or double acting offer stainless steel tubing and stainless... Read more

SKU: CJ2B6-45Z

$13.04 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW


    Series CJ2 miniature cylinders available in spring return, spring extend, or double acting offer stainless steel tubing and stainless steel rods. The series is available in bore sizes 6, 10, 16mm and stroke lengths from 1/2in. to 8in.. Mounting options include basic, foot, front flange, and double rear clevis. Series CJ2 is auto switch capable
    • Both sides foot and head side flange are set on the mounting bracket.
    • Auto switch operability is improved and position adjustment is easy
    • Auto switch rail mounting type part number setting is set. Zoom
    • With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)



    Specification item model symbol Specification information
    With auto switch - Without auto switch
    Mounting support type B Basic type
    tube inner diameter 6 tube inner diameter 6mm
    cylinder stroke 45 cylinder stroke 45mm
    dual stroke mark - No dual stroke mark
    cylinder stroke 2 - Cylinder stroke 2 None
    Cylinder additional symbol - rubber cushion
    Port location on head cover - 90° about axis
    rocking support bracket - no metal fittings
    rod end bracket - no metal fittings
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Auto switch mounting type - doesn't exist
    Custom made specifications - standard
