Description

OVERVIEW

Both sides foot and head side flange are set on the mounting bracket.
Auto switch operability is improved and position adjustment is easy
Auto switch rail mounting type part number setting is set. Zoom
With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)

Specification item	model symbol	Specification information
With auto switch	-	Without auto switch
Mounting support type	D	Double clevis type
tube inner diameter	16	tube inner diameter 16mm
cylinder stroke	10
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol	-	rubber cushion
Port location on head cover	-	90° about axis
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Auto switch mounting type	-	doesn't exist
Custom made specifications	-	standard

Product form

OVERVIEW Both sides foot and head side flange are set on the mounting bracket. Auto switch operability is improved and... Read more

SKU: CJ2D16-10Z

$17.64 Excl. VAT

Both sides foot and head side flange are set on the mounting bracket.
Auto switch operability is improved and position adjustment is easy
Auto switch rail mounting type part number setting is set. Zoom
With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)

Specification item	model symbol	Specification information
With auto switch	-	Without auto switch
Mounting support type	D	Double clevis type
tube inner diameter	16	tube inner diameter 16mm
cylinder stroke	10
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol	-	rubber cushion
Port location on head cover	-	90° about axis
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Auto switch mounting type	-	doesn't exist
Custom made specifications	-	standard

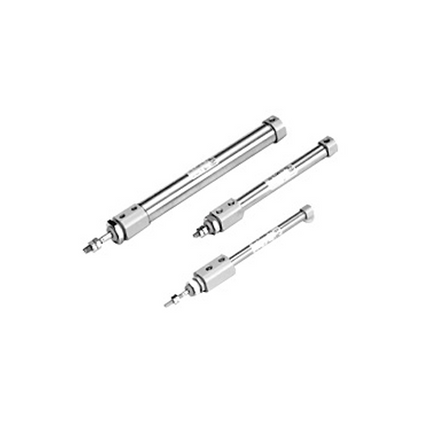

Name: SMC CJ2-Z Series Air Cylinder, Round Body, Double Acting, Single Rod, CJ2D16-10Z
Brand: SMC
SKU: CJ2D16-10Z
Price: 17.64 USD
