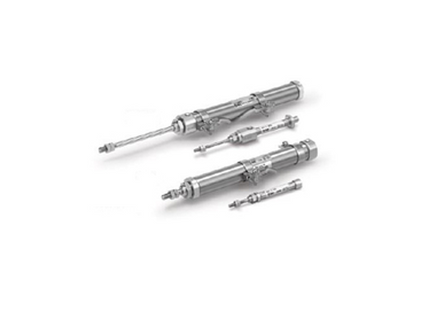

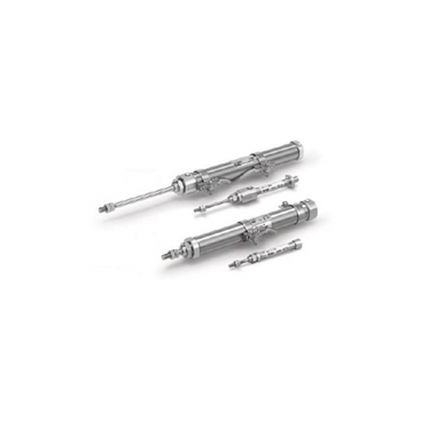

SMC CJ2-Z Series Air Cylinder, Round Body, Single Acting, CDJ2D10-15SZ-B

Description

OVERVIEW


  • Both sides foot and head side flange are set on the mounting bracket.
  • Auto switch operability is improved and position adjustment is easy
  • Auto switch rail mounting type part number setting is set. Zoom
  • With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)



Specification item model symbol Specification information
With auto switch D With auto switch
Mounting support type D Double clevis type
tube inner diameter 10 tube inner diameter 10mm
cylinder stroke 15 cylinder stroke 15mm
how it works S Dandong: Forward
Port location on head cover - 90° about axis
rocking support bracket - no metal fittings
rod end bracket - no metal fittings
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Auto switch mounting type B band attached
Custom made specifications - standard

Product form

OVERVIEW Both sides foot and head side flange are set on the mounting bracket. Auto switch operability is improved and... Read more

SKU: CDJ2D10-15SZ-B

$13.80 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW


    • Both sides foot and head side flange are set on the mounting bracket.
    • Auto switch operability is improved and position adjustment is easy
    • Auto switch rail mounting type part number setting is set. Zoom
    • With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)



    Specification item model symbol Specification information
    With auto switch D With auto switch
    Mounting support type D Double clevis type
    tube inner diameter 10 tube inner diameter 10mm
    cylinder stroke 15 cylinder stroke 15mm
    how it works S Dandong: Forward
    Port location on head cover - 90° about axis
    rocking support bracket - no metal fittings
    rod end bracket - no metal fittings
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Auto switch mounting type B band attached
    Custom made specifications - standard
