Description

OVERVIEW

Both sides foot and head side flange are set on the mounting bracket.
Auto switch operability is improved and position adjustment is easy
Auto switch rail mounting type part number setting is set. Zoom
With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)

Specification item	model symbol	Specification information
With auto switch	-	Without auto switch
Mounting support type	L	single foot
tube inner diameter	16	tube inner diameter 16mm
cylinder stroke	30	cylinder stroke 30mm
how it works	S	Dandong: Forward
Port location on head cover	R	axial
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Auto switch mounting type	-	doesn't exist
Custom made specifications	-	standard

Product form

OVERVIEW Both sides foot and head side flange are set on the mounting bracket. Auto switch operability is improved and... Read more

SKU: CJ2L16-30SRZ

$20.58 Excl. VAT

Both sides foot and head side flange are set on the mounting bracket.
Auto switch operability is improved and position adjustment is easy
Auto switch rail mounting type part number setting is set. Zoom
With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)

Specification item	model symbol	Specification information
With auto switch	-	Without auto switch
Mounting support type	L	single foot
tube inner diameter	16	tube inner diameter 16mm
cylinder stroke	30	cylinder stroke 30mm
how it works	S	Dandong: Forward
Port location on head cover	R	axial
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Auto switch mounting type	-	doesn't exist
Custom made specifications	-	standard

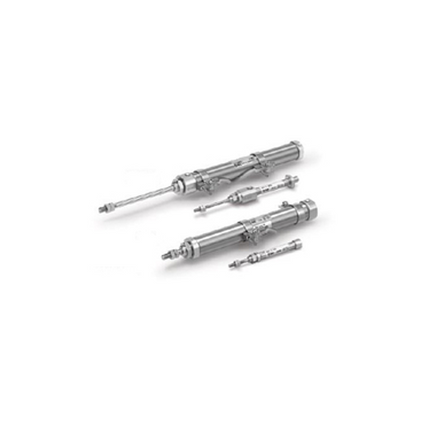

Name: SMC CJ2-Z Series Air Cylinder, Round Body, Single Acting, CJ2L16-30SRZ
Brand: SMC
SKU: CJ2L16-30SRZ
Price: 20.58 USD

0 out of 5 stars

This product has no reviews yet
