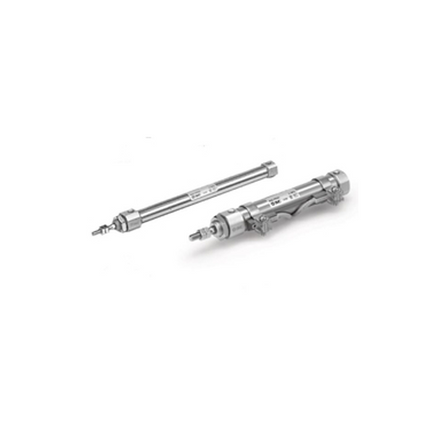

Name: SMC CJ2K-Z Series Air Cylinder, Non-Rot, Round Body, Double Acting, Single Rod, CDJ2KB10-100Z-A93-B
Brand: SMC
SKU: CDJ2KB10-100Z-A93-B
Price: 67.45 USD
Availability: InStock

SMC CJ2K-Z Series Air Cylinder, Non-Rot, Round Body, Double Acting, Single Rod, CDJ2KB10-100Z-A93-B

VendorSMC

Description

OVERVIEW

Both sides foot and head side flange are set on the mounting bracket.
Auto switch operability is improved and position adjustment is easy
Auto switch rail mounting type part number setting is set. Zoom
With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	B	Basic type
tube inner diameter	10	tube inner diameter 10mm
cylinder stroke	100	cylinder stroke 100mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Port location on head cover	-	90° about axis
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	A93	Reed auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	-	2 with or without
Auto switch mounting type	B	band attached
Custom made specifications	-	standard

Specification — CDJ2KB10-100Z-A93-B

Bore	10mm
Stroke	100mm
Port size	M5X0.8
Fluid	Air
Action	Double acting
Cushion	Rubber bumper
Port thread	M
Rod end male thread	M4X0.7
Min. operating pressure	0.06 MPa
Max. operating pressure	0.7 MPa
Proof pressure	1 MPa
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Lubrication	Non-lube
Piston speed min	50 mm/s
Piston speed max	750 mm/s
Weight	77 g

Specification values above are for model code CDJ2KB10-100Z-A93-B as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
