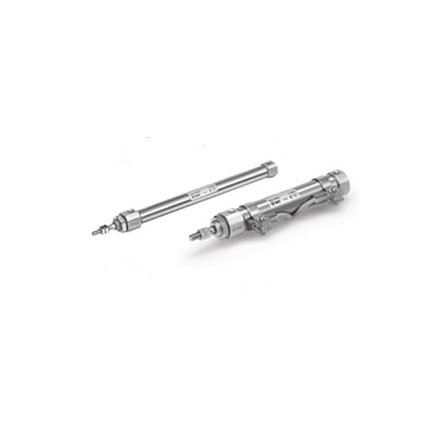

SMC CJ2K-Z Series Air Cylinder, Non-Rot, Round Body, Double Acting, Single Rod, CDJ2KB10-30Z-A

Description

OVERVIEW


  • Both sides foot and head side flange are set on the mounting bracket.
  • Auto switch operability is improved and position adjustment is easy
  • Auto switch rail mounting type part number setting is set. Zoom
  • With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)



Specification item model symbol Specification information
With auto switch D With auto switch
Mounting support type B Basic type
tube inner diameter 10 tube inner diameter 10mm
cylinder stroke 30 cylinder stroke 30mm
dual stroke mark - No dual stroke mark
cylinder stroke 2 - Cylinder stroke 2 None
Port location on head cover - 90° about axis
rocking support bracket - no metal fittings
rod end bracket - no metal fittings
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Auto switch mounting type A rail mounted
Custom made specifications - standard

Product form

OVERVIEW Both sides foot and head side flange are set on the mounting bracket. Auto switch operability is improved and... Read more

SKU: CDJ2KB10-30Z-A

$24.49 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      • Both sides foot and head side flange are set on the mounting bracket.
      • Auto switch operability is improved and position adjustment is easy
      • Auto switch rail mounting type part number setting is set. Zoom
      • With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)



      Specification item model symbol Specification information
      With auto switch D With auto switch
      Mounting support type B Basic type
      tube inner diameter 10 tube inner diameter 10mm
      cylinder stroke 30 cylinder stroke 30mm
      dual stroke mark - No dual stroke mark
      cylinder stroke 2 - Cylinder stroke 2 None
      Port location on head cover - 90° about axis
      rocking support bracket - no metal fittings
      rod end bracket - no metal fittings
      auto switch - Without auto switch
      Auto switch additional symbol - 2 with or without
      Auto switch mounting type A rail mounted
      Custom made specifications - standard
