Description

OVERVIEW

Both sides foot and head side flange are set on the mounting bracket.
Auto switch operability is improved and position adjustment is easy
Auto switch rail mounting type part number setting is set. Zoom
With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	B	Basic type
tube inner diameter	16	tube inner diameter 16mm
cylinder stroke	60	cylinder stroke 60mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Port location on head cover	-	90° about axis
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	A93L	Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	-	2 with or without
Auto switch mounting type	B	band attached
Custom made specifications	-	standard

Product form

OVERVIEW Both sides foot and head side flange are set on the mounting bracket. Auto switch operability is improved and... Read more

SKU: CDJ2KB16-60Z-A93L-B

$118.60 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Description

OVERVIEW

Both sides foot and head side flange are set on the mounting bracket.
Auto switch operability is improved and position adjustment is easy
Auto switch rail mounting type part number setting is set. Zoom
With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	B	Basic type
tube inner diameter	16	tube inner diameter 16mm
cylinder stroke	60	cylinder stroke 60mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Port location on head cover	-	90° about axis
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	A93L	Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	-	2 with or without
Auto switch mounting type	B	band attached
Custom made specifications	-	standard

Reviews

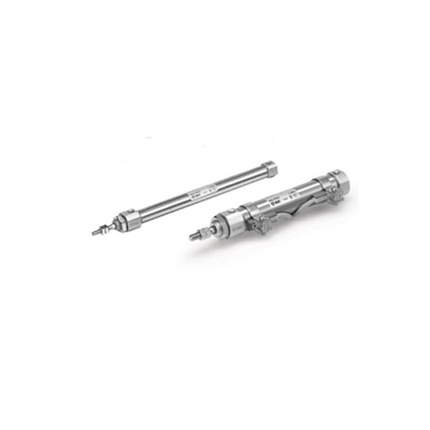

Name: SMC CJ2K-Z Series Air Cylinder, Non-Rot, Round Body, Double Acting, Single Rod, CDJ2KB16-60Z-A93L-B
Brand: SMC
SKU: CDJ2KB16-60Z-A93L-B
Price: 118.6 USD

SMC CJ2K-Z Series Air Cylinder, Non-Rot, Round Body, Double Acting, Single Rod, CDJ2KB16-60Z-A93L-B
