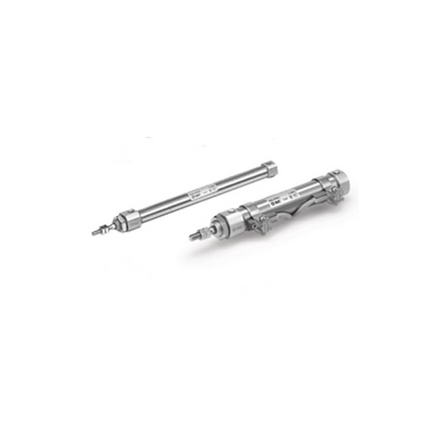

Name: SMC CJ2K-Z Series Air Cylinder, Non-Rot, Round Body, Double Acting, Single Rod, CJ2KB16-40Z
Brand: SMC
SKU: CJ2KB16-40Z
Price: 18.39 USD
Availability: InStock

SMC CJ2K-Z Series Air Cylinder, Non-Rot, Round Body, Double Acting, Single Rod, CJ2KB16-40Z

VendorSMC

Description

OVERVIEW

Both sides foot and head side flange are set on the mounting bracket.
Auto switch operability is improved and position adjustment is easy
Auto switch rail mounting type part number setting is set. Zoom
With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)

Specification item	model symbol	Specification information
With auto switch	-	Without auto switch
Mounting support type	B	Basic type
tube inner diameter	16	tube inner diameter 16mm
cylinder stroke	40
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Port location on head cover	-	90° about axis
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Auto switch mounting type	-	doesn't exist
Custom made specifications	-	standard

Specification — CJ2KB16-40Z

Bore	16mm
Stroke	40
Auto switch	Without auto switch
Port size	M5X0.8
Fluid	Air
Action	Double acting
Cushion	Rubber bumper
Port thread	M
Rod end male thread	M5X0.8
Min. operating pressure	0.06 MPa
Max. operating pressure	0.7 MPa
Proof pressure	1 MPa
Ambient temp. min	-10 ℃
Ambient temp. max	70 ℃
Lubrication	Non-lube
Piston speed min	50 mm/s
Weight	69 g

Specification values above are for model code CJ2KB16-40Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
