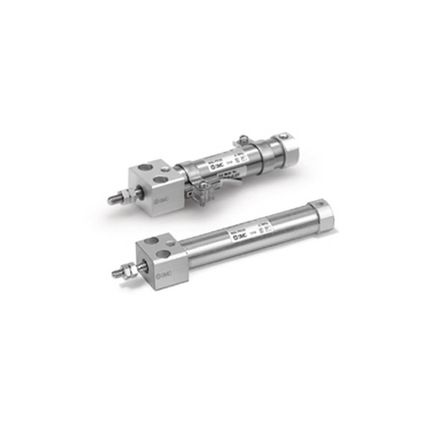

SMC CJ2R-Z Series Air Cylinder, direct mount, Round Body, Double Acting, CDJ2RA10-60Z-A93L-B

Description

OVERVIEW


  • Both sides foot and head side flange are set on the mounting bracket.
  • Auto switch operability is improved and position adjustment is easy
  • Auto switch rail mounting type part number setting is set. Zoom
  • With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)



Specification item model symbol Specification information
With auto switch D With auto switch
tube inner diameter 10 tube inner diameter 10mm
cylinder stroke 60 cylinder stroke 60mm
Port location on head cover - 90° about axis
rod end bracket - no metal fittings
auto switch A93L Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
Auto switch additional symbol - 2 with or without
Auto switch mounting type B band attached
Custom made specifications - standard

Product form

OVERVIEW Both sides foot and head side flange are set on the mounting bracket. Auto switch operability is improved and... Read more

SKU: CDJ2RA10-60Z-A93L-B

$93.10 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      • Both sides foot and head side flange are set on the mounting bracket.
      • Auto switch operability is improved and position adjustment is easy
      • Auto switch rail mounting type part number setting is set. Zoom
      • With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)



      Specification item model symbol Specification information
      With auto switch D With auto switch
      tube inner diameter 10 tube inner diameter 10mm
      cylinder stroke 60 cylinder stroke 60mm
      Port location on head cover - 90° about axis
      rod end bracket - no metal fittings
      auto switch A93L Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
      Auto switch additional symbol - 2 with or without
      Auto switch mounting type B band attached
      Custom made specifications - standard
