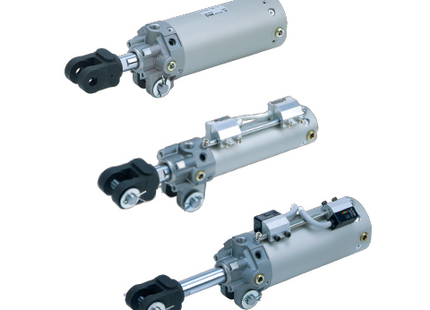

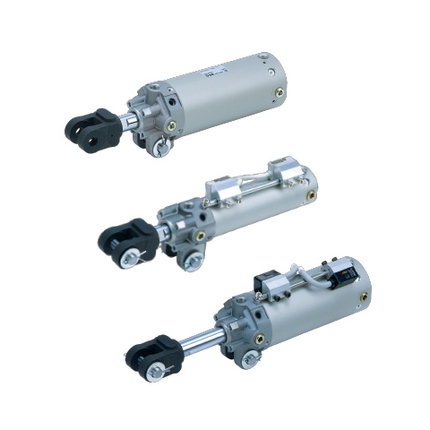

SMC CK1-Z/CKG1-Z Series Clamp Cylinder, Auto Switch Band, CKG1A50-50YZ-X1515

Description

OVERVIEW


The CK1 series is a clamp cylinder available in two styles of clevis widths *. It is a non-lube, compact, lightweight cylinder with a built-in speed controller. Gaiters are unnecessary because a heavy-duty coil scraper is provided as a countermeasure against spatters. The CK1 is available in 3 bore sizes with stroke lengths up to 150mm. Options include rod attachments and auto-switch capabilities.

  • Reduced overall tube length by 7mm (in case of CKP1□40)
  • Easy speed adjustment with screw adjustment structure
  • The speed controller valve does not protrude from the outer tube.
  • Possible to attach magnetic field resistant auto switch in 3 directions
    Compatible with D-P3DW and D-P4DW (CKG1)
    Supports D-P79WSE and D-P74L/Z
  • Supports spatter-resistant cylinders for arc welding (-XC88/-XC89/-XC91) (CKG1 only)



Specification item model symbol Specification information
emphysema G Built-in standard magnet type with magnetic field resistant auto switch
clevis width A 16.5mm
tube inner diameter 50 50mm
screw type - RC1/4
cylinder stroke 50 cylinder stroke 50mm
tip bracket Y Double knuckle joint M6 without tap
option - doesn't exist
auto switch - Without auto switch Built-in magnet Without rod with switch
Auto switch additional symbol - 2 with or without
Custom made specifications X1515 With cushions on both sides




Specification — CKG1A50-50YZ-X1515

Bore 50mm
Stroke 50mm
Fluid Air
Action Double acting
Cushion Air cushion
Min. operating pressure 0.05 MPa
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Fluid temp. min -10 °C
Fluid temp. max 60 °C
Ambient temp. min -10 °C
Ambient temp. max 60 °C
Lubrication Non-lube
Piston speed min 50 mm/s
Piston speed max 500 mm/s
Rod diameter 20 mm
Weight 1,000 g

Specification values above are for model code CKG1A50-50YZ-X1515 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW The CK1 series is a clamp cylinder available in two styles of clevis widths *. It is a non-lube,... Read more

SKU: CKG1A50-50YZ-X1515

$106.02 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW


    The CK1 series is a clamp cylinder available in two styles of clevis widths *. It is a non-lube, compact, lightweight cylinder with a built-in speed controller. Gaiters are unnecessary because a heavy-duty coil scraper is provided as a countermeasure against spatters. The CK1 is available in 3 bore sizes with stroke lengths up to 150mm. Options include rod attachments and auto-switch capabilities.

    • Reduced overall tube length by 7mm (in case of CKP1□40)
    • Easy speed adjustment with screw adjustment structure
    • The speed controller valve does not protrude from the outer tube.
    • Possible to attach magnetic field resistant auto switch in 3 directions
      Compatible with D-P3DW and D-P4DW (CKG1)
      Supports D-P79WSE and D-P74L/Z
    • Supports spatter-resistant cylinders for arc welding (-XC88/-XC89/-XC91) (CKG1 only)



    Specification item model symbol Specification information
    emphysema G Built-in standard magnet type with magnetic field resistant auto switch
    clevis width A 16.5mm
    tube inner diameter 50 50mm
    screw type - RC1/4
    cylinder stroke 50 cylinder stroke 50mm
    tip bracket Y Double knuckle joint M6 without tap
    option - doesn't exist
    auto switch - Without auto switch Built-in magnet Without rod with switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications X1515 With cushions on both sides




    Specification — CKG1A50-50YZ-X1515

    Bore 50mm
    Stroke 50mm
    Fluid Air
    Action Double acting
    Cushion Air cushion
    Min. operating pressure 0.05 MPa
    Max. operating pressure 1.0 MPa
    Proof pressure 1.5 MPa
    Fluid temp. min -10 °C
    Fluid temp. max 60 °C
    Ambient temp. min -10 °C
    Ambient temp. max 60 °C
    Lubrication Non-lube
    Piston speed min 50 mm/s
    Piston speed max 500 mm/s
    Rod diameter 20 mm
    Weight 1,000 g

    Specification values above are for model code CKG1A50-50YZ-X1515 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
