Description

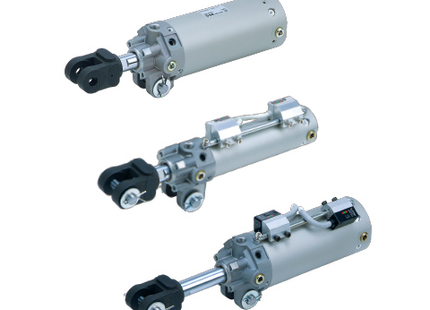

SMC CKG1A50-75YZ — CK1-Z/CKG1-Z Series Clamp Cylinder, Auto Switch Band. This code specifies 50mm bore, 75mm stroke, double acting.
Specification — CKG1A50-75YZ
| Bore |
50mm |
| Stroke |
75mm |
| Fluid |
Air |
| Action |
Double acting |
| Cushion |
Air cushion |
| Min. operating pressure |
0.05 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Fluid temp. min |
-10 °C |
| Fluid temp. max |
60 °C |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
60 °C |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Piston speed max |
500 mm/s |
| Rod diameter |
20 mm |
| Weight |
1,620 g |
Specification values above are for model code CKG1A50-75YZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
Series features
- Reduced overall tube length by 7mm (in case of CKP140)
- Easy speed adjustment with screw adjustment structure
- The speed controller valve does not protrude from the outer tube.
- Possible to attach magnetic field resistant auto switch in 3 directionsCompatible with D-P3DW and D-P4DW (CKG1)Supports D-P79WSE and D-P74L/Z
- Supports spatter-resistant cylinders for arc welding (-XC88/-XC89/-XC91) (CKG1 only)
