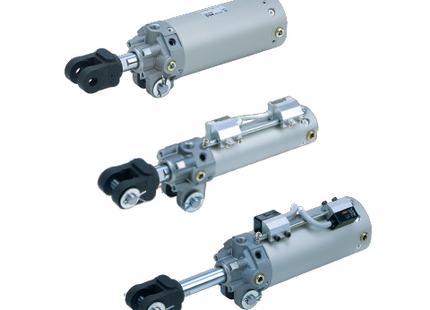

SMC CK1-Z/CKG1-Z Series Clamp Cylinder, Auto Switch Band, CKG1A63-100YALZ-P

Description

OVERVIEW


The CK1 series is a clamp cylinder available in two styles of clevis widths *. It is a non-lube, compact, lightweight cylinder with a built-in speed controller. Gaiters are unnecessary because a heavy-duty coil scraper is provided as a countermeasure against spatters. The CK1 is available in 3 bore sizes with stroke lengths up to 150mm. Options include rod attachments and auto-switch capabilities.

  • Reduced overall tube length by 7mm (in case of CKP1□40)
  • Easy speed adjustment with screw adjustment structure
  • The speed controller valve does not protrude from the outer tube.
  • Possible to attach magnetic field resistant auto switch in 3 directions
    Compatible with D-P3DW and D-P4DW (CKG1)
    Supports D-P79WSE and D-P74L/Z
  • Supports spatter-resistant cylinders for arc welding (-XC88/-XC89/-XC91) (CKG1 only)



Specification item model symbol Specification information
emphysema G Built-in standard magnet type with magnetic field resistant auto switch
clevis width A 16.5mm
tube inner diameter 63 63mm
screw type - RC1/4
cylinder stroke 100 cylinder stroke 100mm
tip bracket YA Double knuckle joint M6 with tap
option L foot
auto switch P Without auto switch Built-in magnet With switch With rod
Auto switch additional symbol - 2 with or without
Custom made specifications - standard




Product form

OVERVIEW The CK1 series is a clamp cylinder available in two styles of clevis widths *. It is a non-lube,... Read more

SKU: CKG1A63-100YALZ-P

$202.39 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      The CK1 series is a clamp cylinder available in two styles of clevis widths *. It is a non-lube, compact, lightweight cylinder with a built-in speed controller. Gaiters are unnecessary because a heavy-duty coil scraper is provided as a countermeasure against spatters. The CK1 is available in 3 bore sizes with stroke lengths up to 150mm. Options include rod attachments and auto-switch capabilities.

      • Reduced overall tube length by 7mm (in case of CKP1□40)
      • Easy speed adjustment with screw adjustment structure
      • The speed controller valve does not protrude from the outer tube.
      • Possible to attach magnetic field resistant auto switch in 3 directions
        Compatible with D-P3DW and D-P4DW (CKG1)
        Supports D-P79WSE and D-P74L/Z
      • Supports spatter-resistant cylinders for arc welding (-XC88/-XC89/-XC91) (CKG1 only)



      Specification item model symbol Specification information
      emphysema G Built-in standard magnet type with magnetic field resistant auto switch
      clevis width A 16.5mm
      tube inner diameter 63 63mm
      screw type - RC1/4
      cylinder stroke 100 cylinder stroke 100mm
      tip bracket YA Double knuckle joint M6 with tap
      option L foot
      auto switch P Without auto switch Built-in magnet With switch With rod
      Auto switch additional symbol - 2 with or without
      Custom made specifications - standard
