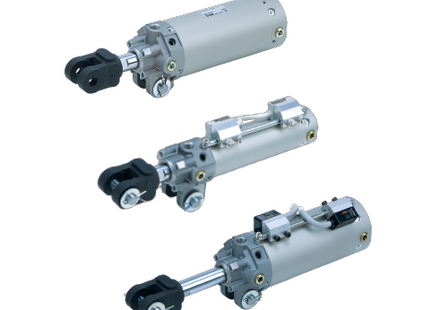

SMC CK1-Z/CKG1-Z Series Clamp Cylinder, Auto Switch Band, CKG1A63-75YZ-P

Description

OVERVIEW


The CK1 series is a clamp cylinder available in two styles of clevis widths *. It is a non-lube, compact, lightweight cylinder with a built-in speed controller. Gaiters are unnecessary because a heavy-duty coil scraper is provided as a countermeasure against spatters. The CK1 is available in 3 bore sizes with stroke lengths up to 150mm. Options include rod attachments and auto-switch capabilities.

  • Reduced overall tube length by 7mm (in case of CKP1□40)
  • Easy speed adjustment with screw adjustment structure
  • The speed controller valve does not protrude from the outer tube.
  • Possible to attach magnetic field resistant auto switch in 3 directions
    Compatible with D-P3DW and D-P4DW (CKG1)
    Supports D-P79WSE and D-P74L/Z
  • Supports spatter-resistant cylinders for arc welding (-XC88/-XC89/-XC91) (CKG1 only)



Specification item model symbol Specification information
emphysema G Built-in standard magnet type with magnetic field resistant auto switch
clevis width A 16.5mm
tube inner diameter 63 63mm
screw type - RC1/4
cylinder stroke 75 Cylinder stroke 75mm
tip bracket Y Double knuckle joint M6 without tap
option - doesn't exist
auto switch P Without auto switch Built-in magnet With switch With rod
Auto switch additional symbol - 2 with or without
Custom made specifications - standard




Product form

OVERVIEW The CK1 series is a clamp cylinder available in two styles of clevis widths *. It is a non-lube,... Read more

SKU: CKG1A63-75YZ-P

$190.14 Excl. VAT
