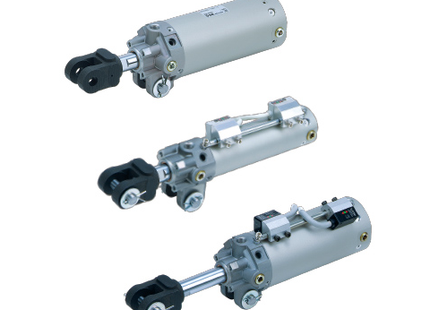

SMC CK1-Z/CKG1-Z Series Clamp Cylinder, Auto Switch Band, CKG1A63-75YZ-P4DWSC

Description

OVERVIEW


The CK1 series is a clamp cylinder available in two styles of clevis widths *. It is a non-lube, compact, lightweight cylinder with a built-in speed controller. Gaiters are unnecessary because a heavy-duty coil scraper is provided as a countermeasure against spatters. The CK1 is available in 3 bore sizes with stroke lengths up to 150mm. Options include rod attachments and auto-switch capabilities.

  • Reduced overall tube length by 7mm (in case of CKP1□40)
  • Easy speed adjustment with screw adjustment structure
  • The speed controller valve does not protrude from the outer tube.
  • Possible to attach magnetic field resistant auto switch in 3 directions
    Compatible with D-P3DW and D-P4DW (CKG1)
    Supports D-P79WSE and D-P74L/Z
  • Supports spatter-resistant cylinders for arc welding (-XC88/-XC89/-XC91) (CKG1 only)



Specification item model symbol Specification information
emphysema G Built-in standard magnet type with magnetic field resistant auto switch
clevis width A 16.5mm
tube inner diameter 63 63mm
screw type - RC1/4
cylinder stroke 75 Cylinder stroke 75mm
tip bracket Y Double knuckle joint M6 without tap
option - doesn't exist
auto switch P4DWSC Magnetic field resistant 2-color display, solid-state auto switch, M12-4 pin pre-wired connector, with light, 2-wire type, side entry, lead wire 0.3 m, applied voltage: DC24V (DC20 to 28V)
Auto switch additional symbol - 2 with or without
Custom made specifications - standard




Product form

OVERVIEW The CK1 series is a clamp cylinder available in two styles of clevis widths *. It is a non-lube,... Read more

SKU: CKG1A63-75YZ-P4DWSC

$262.67 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW


    The CK1 series is a clamp cylinder available in two styles of clevis widths *. It is a non-lube, compact, lightweight cylinder with a built-in speed controller. Gaiters are unnecessary because a heavy-duty coil scraper is provided as a countermeasure against spatters. The CK1 is available in 3 bore sizes with stroke lengths up to 150mm. Options include rod attachments and auto-switch capabilities.

    • Reduced overall tube length by 7mm (in case of CKP1□40)
    • Easy speed adjustment with screw adjustment structure
    • The speed controller valve does not protrude from the outer tube.
    • Possible to attach magnetic field resistant auto switch in 3 directions
      Compatible with D-P3DW and D-P4DW (CKG1)
      Supports D-P79WSE and D-P74L/Z
    • Supports spatter-resistant cylinders for arc welding (-XC88/-XC89/-XC91) (CKG1 only)



    Specification item model symbol Specification information
    emphysema G Built-in standard magnet type with magnetic field resistant auto switch
    clevis width A 16.5mm
    tube inner diameter 63 63mm
    screw type - RC1/4
    cylinder stroke 75 Cylinder stroke 75mm
    tip bracket Y Double knuckle joint M6 without tap
    option - doesn't exist
    auto switch P4DWSC Magnetic field resistant 2-color display, solid-state auto switch, M12-4 pin pre-wired connector, with light, 2-wire type, side entry, lead wire 0.3 m, applied voltage: DC24V (DC20 to 28V)
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard
