Description

OVERVIEW

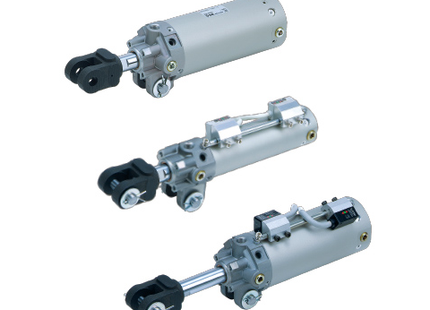

The CK1 series is a clamp cylinder available in two styles of clevis widths *. It is a non-lube, compact, lightweight cylinder with a built-in speed controller. Gaiters are unnecessary because a heavy-duty coil scraper is provided as a countermeasure against spatters. The CK1 is available in 3 bore sizes with stroke lengths up to 150mm. Options include rod attachments and auto-switch capabilities.

Reduced overall tube length by 7mm (in case of CKP1□40)
Easy speed adjustment with screw adjustment structure
The speed controller valve does not protrude from the outer tube.
Possible to attach magnetic field resistant auto switch in 3 directions
Compatible with D-P3DW and D-P4DW (CKG1)
Supports D-P79WSE and D-P74L/Z
Supports spatter-resistant cylinders for arc welding (-XC88/-XC89/-XC91) (CKG1 only)

Specification item	model symbol	Specification information
emphysema	G	Built-in standard magnet type with magnetic field resistant auto switch
clevis width	B	19.5mm
tube inner diameter	63	63mm
screw type	-	RC1/4
cylinder stroke	50	cylinder stroke 50mm
tip bracket	Y	Double knuckle joint M6 without tap
option	-	doesn't exist
auto switch	P3DWAL	Magnetic field resistant 2-color display, solid-state auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V
Auto switch additional symbol	-	2 with or without
Custom made specifications	X1515	With cushions on both sides

Product form

OVERVIEW The CK1 series is a clamp cylinder available in two styles of clevis widths *. It is a non-lube,... Read more

SKU: CKG1B63-50YZ-P3DWAL-X1515

$281.45 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Description

OVERVIEW

The CK1 series is a clamp cylinder available in two styles of clevis widths *. It is a non-lube, compact, lightweight cylinder with a built-in speed controller. Gaiters are unnecessary because a heavy-duty coil scraper is provided as a countermeasure against spatters. The CK1 is available in 3 bore sizes with stroke lengths up to 150mm. Options include rod attachments and auto-switch capabilities.

Reduced overall tube length by 7mm (in case of CKP1□40)
Easy speed adjustment with screw adjustment structure
The speed controller valve does not protrude from the outer tube.
Possible to attach magnetic field resistant auto switch in 3 directions
Compatible with D-P3DW and D-P4DW (CKG1)
Supports D-P79WSE and D-P74L/Z
Supports spatter-resistant cylinders for arc welding (-XC88/-XC89/-XC91) (CKG1 only)

Specification item	model symbol	Specification information
emphysema	G	Built-in standard magnet type with magnetic field resistant auto switch
clevis width	B	19.5mm
tube inner diameter	63	63mm
screw type	-	RC1/4
cylinder stroke	50	cylinder stroke 50mm
tip bracket	Y	Double knuckle joint M6 without tap
option	-	doesn't exist
auto switch	P3DWAL	Magnetic field resistant 2-color display, solid-state auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V
Auto switch additional symbol	-	2 with or without
Custom made specifications	X1515	With cushions on both sides
