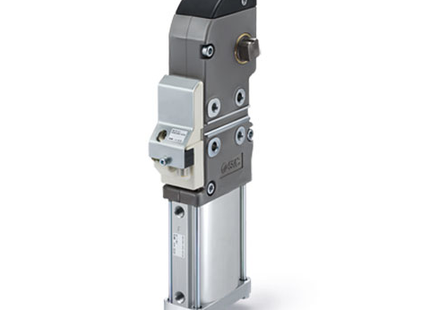

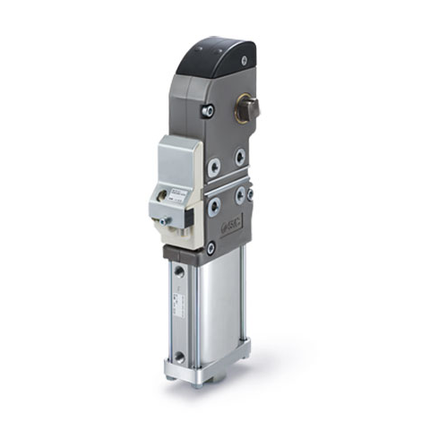

Name: SMC CKZ3T-X2734 Series Power Clamp Cylinder Without Arm, CKZ3T63-105T-X2734
Brand: SMC
SKU: CKZ3T63-105T-X2734
Price: 507.97 USD
Availability: InStock

SMC CKZ3T-X2734 Series Power Clamp Cylinder Without Arm, CKZ3T63-105T-X2734

VendorSMC

Description

OVERVIEW

Significant reduction in man-hours by simple switch adjustment
Easy switch adjustment when changing arm opening
Attached metal switch cassette cover
Up to 39% weight reduction
High clamping force 4000N
Spatter-resistant structure
2 types of top cover available

Specification item	model symbol	Specification information
tube inner diameter	63	ø63 equivalent
cylinder port	-	G
Arm opening	105	105°
proximity switch	T	TURCK
top cover	-	Rubber cover (equivalent to UL94 standard V0, flame retardant)

Specification — CKZ3T63-105T-X2734

Fluid	Air
Action	Double acting
Stroke	74.8 mm
Cushion	Rubber bumper
Min. operating pressure	0.3 MPa
Max. operating pressure	0.8 MPa
Proof pressure	1.2 MPa
Ambient temp. min	-10 °C
Ambient temp. max	60 °C
Lubrication	Non-lube
Weight	4,200 g

Specification values above are for model code CKZ3T63-105T-X2734 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
