Description

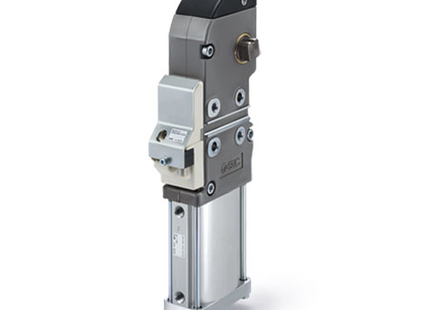

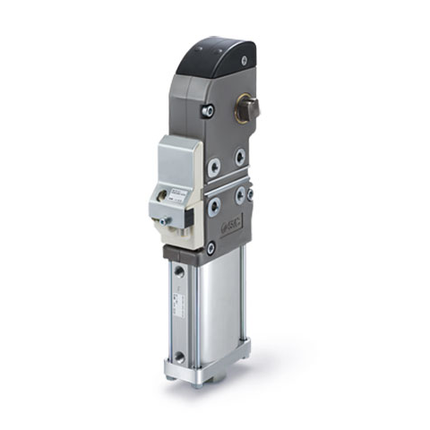

SMC CKZ3T63-120T-X2734 — CKZ3T-X2734 Series Power Clamp Cylinder Without Arm. This code specifies 63mm bore, 81.6 mm stroke, double acting.
Specification — CKZ3T63-120T-X2734
| Fluid |
Air |
| Action |
Double acting |
| Stroke |
81.6 mm |
| Cushion |
Rubber bumper |
| Min. operating pressure |
0.3 MPa |
| Max. operating pressure |
0.8 MPa |
| Proof pressure |
1.2 MPa |
| Fluid temp. min |
-10 °C |
| Fluid temp. max |
60 °C |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
60 °C |
| Lubrication |
Non-lube |
| Weight |
4,200 g |
Specification values above are for model code CKZ3T63-120T-X2734 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CKZ3T-X2734 series
- Significant reduction in man-hours by simple switch adjustmentEasy switch adjustment when changing arm opening
- Attached metal switch cassette cover
- Up to 39% weight reduction
- High clamping force 4000N
- Spatter-resistant structure
- 2 types of top cover available
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
