Description

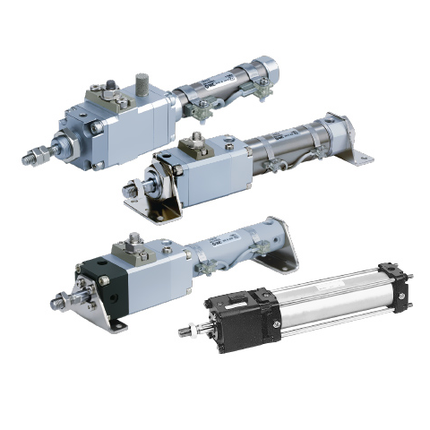

SMC CDLA2B80-250-D — CLA2 Series Fine Lock Cylinder, Double Acting, Single Rod. This code specifies 80mm bore, 250mm stroke, double acting, without auto switch.
Specification — CDLA2B80-250-D
| Bore |
80mm |
| Port thread |
Rc |
| Stroke |
250mm |
| Auto switch |
Without auto switch |
| Fluid |
Air |
| Action |
Double acting |
| Rod end male thread |
M22X1.5 |
| Min. operating pressure |
0.08 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Fluid temp. min |
-10 ℃ |
| Fluid temp. max |
60 ℃ |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Weight |
9,250 g |
Specification values above are for model code CDLA2B80-250-D as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CLA2 series
- Cylinder with lock suitable for intermediate stop, emergency stop and drop prevention(two-way lock) CL1 is one-way lock
- With auto switch (CDL series: CDLJ2, CDLM2, CDLG1, CDL1)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
