Description

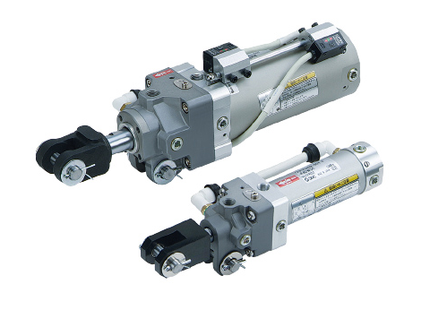

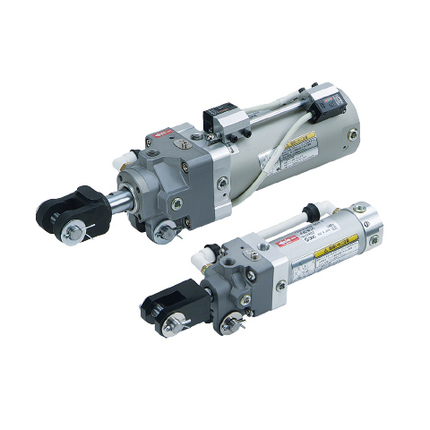

SMC CLK2GA50-100-B — CLK2G/CLK2P Series Clamp Cylinder, W/Lock , Auto Switch. This code specifies 50mm bore, 100mm stroke, double acting.
Specification — CLK2GA50-100-B
| Bore |
50mm |
| Stroke |
100mm |
| Fluid |
Air |
| Action |
Double acting |
| Cushion |
Air cushion |
| Min. operating pressure |
0.2 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Fluid temp. min |
-10 °C |
| Fluid temp. max |
60 °C |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
60 °C |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Piston speed max |
500 mm/s |
| Weight |
1,920 g |
Specification values above are for model code CLK2GA50-100-B as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
Series features
- Clamp cylinder that maintains the clamped and unclamped state during air source pressure drop and residual pressure exhaust (one-way lock)
- Built-in cushion valve and plug eliminate protruding shape from the outer tube cover to improve workability
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
