Description

OVERVIEW

SMC's CLK2 series is?a perfect choice for holding applications in either a clamped or unclamped state.? CLK2 cylinders have a compact lock mechanism which minimizes the extension of the length dimension (2mm shorter), while maintaining the mounting interchangeability with the CLK1 existing product line.? The CLK2 is capable of being locked at any position within the entire stroke.? A dedicated solenoid valve is not required for unlocking, thus reducing the initial costs and replacement of the existing equipment.

Clamp cylinder that maintains the clamped and unclamped state during air source pressure drop and residual pressure exhaust (one-way lock)
Built-in cushion valve and plug eliminate protruding shape from the outer tube cover to improve workability

Specification item	model symbol	Specification information
emphysema	G	Built-in standard magnet type with magnetic field resistant auto switch
clevis width	A	16.5mm
tube inner diameter	50	tube inner diameter 50mm
port type	-	Rc
cylinder stroke	100	cylinder stroke 100mm
tip bracket	YA	Double knuckle joint M6 with tap
option	-	doesn't exist
Lock direction	B	Reverse direction lock
Location of Port/Bypass Piping	-	Port location: Top; Bypass piping location: Left
Position of rod with switch	-	above/none
auto switch	-	Without auto switch Built-in magnet Without rod with switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW SMC's CLK2 series is?a perfect choice for holding applications in either a clamped or unclamped state.? CLK2 cylinders have... Read more

SKU: CLK2GA50-100YA-B

$292.09 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

OVERVIEW

SMC's CLK2 series is?a perfect choice for holding applications in either a clamped or unclamped state.? CLK2 cylinders have a compact lock mechanism which minimizes the extension of the length dimension (2mm shorter), while maintaining the mounting interchangeability with the CLK1 existing product line.? The CLK2 is capable of being locked at any position within the entire stroke.? A dedicated solenoid valve is not required for unlocking, thus reducing the initial costs and replacement of the existing equipment.

Clamp cylinder that maintains the clamped and unclamped state during air source pressure drop and residual pressure exhaust (one-way lock)
Built-in cushion valve and plug eliminate protruding shape from the outer tube cover to improve workability

Specification item	model symbol	Specification information
emphysema	G	Built-in standard magnet type with magnetic field resistant auto switch
clevis width	A	16.5mm
tube inner diameter	50	tube inner diameter 50mm
port type	-	Rc
cylinder stroke	100	cylinder stroke 100mm
tip bracket	YA	Double knuckle joint M6 with tap
option	-	doesn't exist
Lock direction	B	Reverse direction lock
Location of Port/Bypass Piping	-	Port location: Top; Bypass piping location: Left
Position of rod with switch	-	above/none
auto switch	-	Without auto switch Built-in magnet Without rod with switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

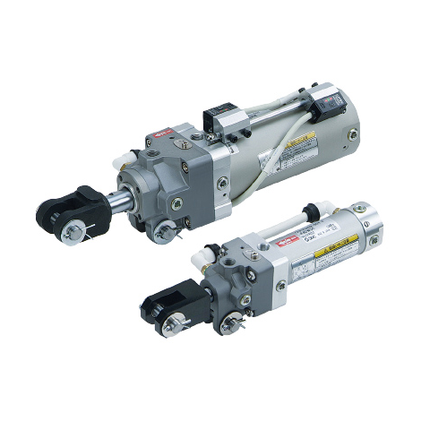

Name: SMC CLK2G/CLK2P Series Clamp Cylinder, W/Lock , Auto Switch, CLK2GA50-100YA-B
